Numak - Grease Dispensing Nozzle
GREASTER is a new dispensing nozzle for grease, equipped with an oval-gear weight meter. The flow-rate of grease nozzles depends on the specific working conditions: it guarantees the correct and exact execution of the greasing operation by displaying the resettable batch total dispensed; it stores grease consumption by reckoning and displaying the cumulative total amount dispensed.
Dispensing nozzle for grease, equipped with an oval-gear weight meter
Grease meter nozzle
- Fluid: Grease
- Exercice pressure: max 550 bar
- Burst pressure: min 1600 bar
- Metering accuracy: ± 3%
- Portata 2,5 kg/min
Handle - made of aluminium, equipped with a steel control lever. The handle houses the battery compartment for nozzle meter powering (two 1.5 V standard batteries, AA Size). Meter - located in the front part of the handle, oval gear type. The gears can be easily accessed by removing the front cover.
Electronic - located in the upper part of the handle. A microprocessor controls the LCD displaying the resettable batch total and the cumulative
total.Nozzle inlet - in line with the handle and suitable for straight swivel or Z-swivel connection.
Nozzle outlet - located in the front part of the handle, it enables the easy installation of rigid or flexible extension. Lever-lock - to ensure safe locking of the lever so as to avoid accidental opening of the valve.

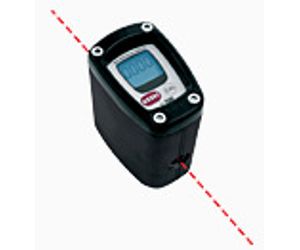

Available in-line version for to install on the tube of grease distributor
