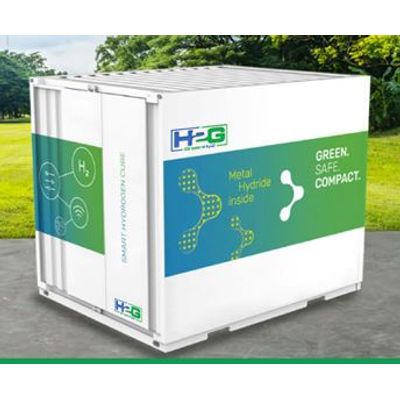

GreenHy2 - Model HY2MINI -Green Energy Storage System
Energy storage capacity : 10 - 25 kg hydrogen (165 - 420 kWh electrical). Power : 7kW / 19kW peak load (15 min every 12h). Electrical system : 1 or 3 Phase to local requirement. EU 120V/230V/400V - 50 Hz NA120V/240V/480V - 60 Hz.
Most popular related searches
energy storage
energy storage capacity
energy storage system
renewable energy storage system
renewable energy storage
gas storage
solid hydrogen storage
electrical system
hydrogen storage
electric power
- Energy storage capacity :
- 165-420 kWh electrical
- 10 - 25 kg H2 @ max. 40 bar
- Nominal load : 7kW
- Peak load : 19 kW (15 min every 12h)
- Output voltages : EU 120V/230V/400V - 50 Hz NA120V/ 240V/480V - 60 Hz
- Powerduring outage 7kWupto60h
- Electrolyzer : 1 - 4 kg hydrogen per 24 h
- Dimensions / Weight : 3 m x 2.5 m x 2.6 m / 4.000 - 6.000 kg
- 100% recyclable
- 100% safe - Solid state hydrogen storage at max. 40 bar
- Superior energy / space ratio vs. batteries or compressed gas storage
- Storage life expectancy of 30 years
- Energy storage capacity maintained over lifetime
- No compressor needed
