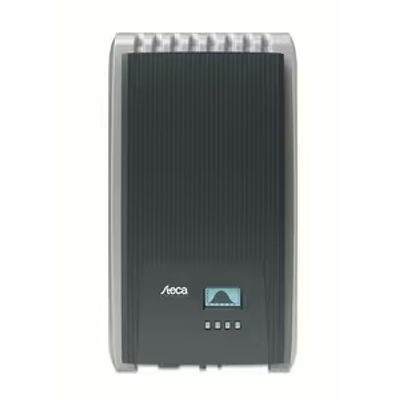

KontronSolar Coolcept - Model StecaGrid 1500, StecaGrid 2000, StecaGrid 2500, St - Grid Inverters for Residential Systems
The very high efficiency level results in a peak efficiency of 98.6% and a European efficiency level of up to 98.3%, which means that less power loss has to be generated and dissipated to the environment. These are your yield advantages. A new and unique cooling concept inside the inverters also guarantees an even distribution of heat and therefore a long service life for the units.
Product design and visualisation
The StecaGrid has a graphical LCD display for visualising the energy yield values, current performance and operating parameters of the system. Its innovative menu allows individual selection of the various measurements.
The guided, pre-programmed menu allows easy final commissioning of the device.
Installation
The lightweights weigh only 8.3 kg, 9.1 kg and 9.6 kg and can be easily and safely mounted on a wall. The supplied wall bracket and practical recessed grips for right and left handed installers make mounting of the device simple and convenient. The device does not need to be opened for installation. All connections and the DC circuit breaker are externally accessible.
Product features
- Highest efficiency
- Simple installation
- Integrated data logger
- Low housing temperature at full load
- Integrated DC circuit breaker
- Protective insulation according to protection class II
- Very long service life
- Droop Mode for integration in hybrid systems
- Fixed voltage mode for other energy sources
- Up to 7-year free warranty after registration
- Optimised shadow management using global MPP tracking
Displays
- Multifunction graphical LCD display with backlighting
- Animated representation of yield
Operation
- Simple menu-driven operation
- Multilingual menu navigation
