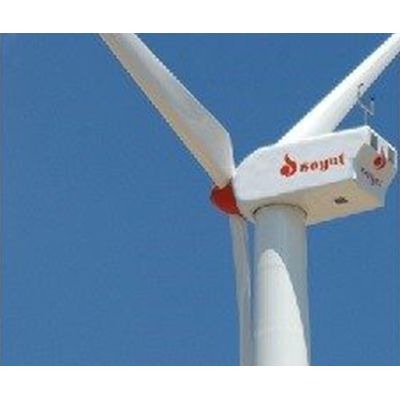

SoyutWind - Model 500 kW -Grid Tie Wind Turbine

Technical Specifications: Rated Wind Speed: 12m/s. Engagement Wind Speed: 3m/s. Disengage Wind Speed: 25m/s. Rotor Diameter: 49 meters. Sweeping Area: 1,885.7 m2. Tower Height: 48 - 50 meters. Lowest and Highest Temperature Range: -20 - 50 oC. Wing Type: Fiberglass Composite. Tower Type: Conical Steel / Steel Cage Composite Coating. Control System: PLC. Yaw System (Wind Orientation    Control)    Electric. Pitch Control: Electric. Gear box: Planetary Gear.
