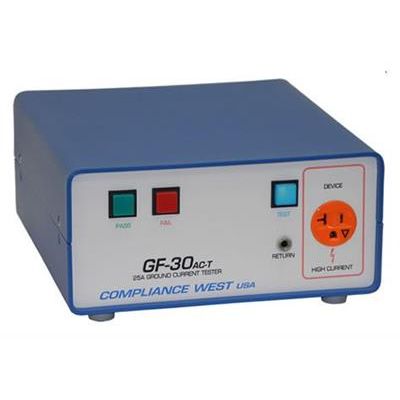

Compliance - Model GF-30AC-T - Ground Continuity Tester, 25A Set Output
25A Ground Bond Tester for TUV and other Production LIne Tests. Simple to use, easy to interpret: GREEN is PASS, RED is FAIL; FAIL stops test and buzzes. A complete, one-touch solution when teamed with a Compliance West Hipot Tester and our HTT-1R Function Tester. Ships complete with test cables and a NIST Calibration Certificate. Heavy metal case and rugged construction, designed for factory environments and continuous product testing. A quality product built to last, made in the USA. We calibrate and repair everything we make.
Most popular related searches
- Pairing with a Compliance West Hipot Tester and our HTT-1R Function Checker makes a complete TUV Production Test Package.
- Logic Controlled, One-button testing. LED indicators. Buzzer upon failure, test terminates.
- AC output. Constant current delivers 25 amps to any ground circuit with resistance of 0 to 0.1Ω.
- Virtual voltage sense circuit. ignores resistance of test leads for accuracy.
- NEMA 5-15 Receptacle for plugging in the device being tested. Universal receptacle available for testing products with International plugs; order Option 30AC-T-W.
- 0.1Ω calibration resistor mounted on rear panel.
- Designed for TUV, NEMKO and CE Safety Agency production line testing, including IEC601.
- With Option TL, the GF-30ac can be teamed with any of our -P hipot testers to make a one-touch test for both Ground Bond and Hipot Tests in accordance with Nemko, TUV and other european production testing requirements. Specify Option TL with your hipot purchase.
- The the current setting can be set to any level between 10 and 30A when purchased. Specify Option 10-30 and note requirement in comments when ordering.
- All test leads included, and a Calibration Certificate is supplied.
- Calibrated to NIST standards; A2LA (ISO 17025) Calibration available.
- 1 year warranty.
- Voltage Range: 0-6 V
- Current Set Point: 0-25 Ams ± 3%
- Input Voltage Requirements: 117-127 V, 50 /60 Hz
- Fuse Requirements: 120 V, 2 A Slow Blow
- Pass/Fail Criterion: 0.1 Ω
- Ramp Time: 10 mSec
- Test Duration Timer: 0-25 Sec Approx.
- Computer Control: No
- Operation Temperature: 15 - 35 °C
- Relative Humidity Range: 0 - 90 % Non-condensing
- Dimensions: 9-1/4" wide x 4-3/4" high x 10" deep
- Weight: 15 Lbs
- Calibration: One year calibration Certificate
