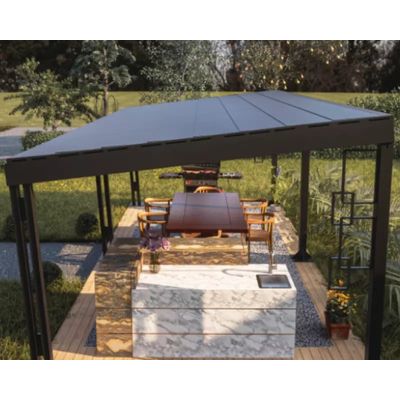

Arka - Model PowerGazebo - Ground-Mounted Solar Panel
FromArka Energy
With PowerGazebo, you`ll enjoy the freedom to consume energy without worry. Offsetting your electricity costs for years to come. The PowerGazebo pays for itself with Input Tax Credits.
Most popular related searches
System Area & Tile Layout
RIVIERA - 180 sq. ft.
LAGUNA - 228 sq. ft.
MALIBU - 264 sq. ft.
DAYTONA - 312 sq. ft.
LAGUNA - 228 sq. ft.
MALIBU - 264 sq. ft.
DAYTONA - 312 sq. ft.
Dimensions
RIVIERA - 15` x 12`
LAGUNA - 19` x 12`
MALIBU - 22` x 12`
DAYTONA - 26` x 12`
LAGUNA - 19` x 12`
MALIBU - 22` x 12`
DAYTONA - 26` x 12`
PV Capacity
RIVIERA - 2.46 kW
LAGUNA - 3.08 kW
MALIBU - 3.69 kW
DAYTONA - 4.31 kW
LAGUNA - 3.08 kW
MALIBU - 3.69 kW
DAYTONA - 4.31 kW
Design Conditions
Upto 150 MPH, 50 PSF Snow Load,
Waterproofing Protection
Waterproofing Protection
False Ceiling
Soffit Metal Ceiling
Front Clearance
6 ft. 11.5 in. / 83.5 in. (Short Side)
& 10 ft. 2 in. / 122 in. (Tall Side)
& 10 ft. 2 in. / 122 in. (Tall Side)
PV Tile Dimensions
1120 mm / 1260 mm
x 465 mm x 8 mm
x 465 mm x 8 mm
PV Tile Power
77 Wp & 90 Wp +2% |
System Voltage 600 V
System Voltage 600 V
Color
Black Finish
(other variants available)
(other variants available)
Accessories
Recessed Lighting, Power Outlet &
Premium Optionals Like LED Lights
Premium Optionals Like LED Lights
