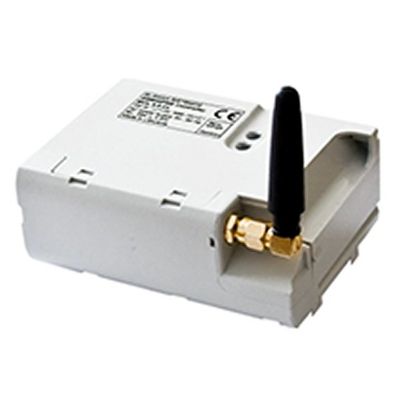

NAVITUS - Model MCL 5.10 R - GSM-R Remote Data Reading Modem
FromUAB NAVITUS LT
MCL 5.10 R is the modification of the controller MCL 5.10 which is specifically designed to work in GSM-R network which is widely used by the companies which manage railways and railway transport. MCL 5.10 R supports automatic network provider selection according to inserted SIM card, has the ability of configuration using SMS messages and supports multiple communication sessions. The number of features may change according to modification.
Most popular related searches
- Power supply, AC90 - 264 V, 50 Hz
- Consumed power< 6 VA
- Backup power supplyLiPo 450 mAh battery
- 20 mA current loop communication interface for meter connectionUp to 3 meters, data transmission speed 300 ... 19200 baud
- 20 mA current loop communication interface for system expansionData transmission speed 300 ... 19200 baud
- RS485 communication interface for meter connectionData transmission speed 300 ... 19200 baud
- RS232 communication interface for configurationData transmission speed 2400 ... 19200 baud
- USB communication interface for configurationData transmission speed 115200 baud (by default)
- GSM/GPRS modem850/900/1800/1900 MHz, Multi-slot class 10, CS1-CS4, Class B
- GSM-R frequency876-880 / 921-925 MHz
- Antenna connectorSMA (50 Ω)
- Operating temperature-20 ... +60⁰C
- Relative humidity5 ... 95% non condensing
- Dimensions93x68x37 mm
