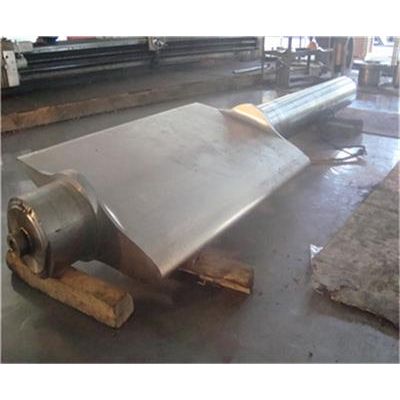

Guide Vane
From Others
Guide vanes are synchronous rotation with the driven of servomotor,and the transmission mechanism are combined with two servomotor and one control ring.The servomotor is fixed on the basis of the turbine.The control ring can rotate around the main shaft.The servomotor is hydraulic servomechanism,including the cylinder,piston and piston push-pull rod etc..With the hydraulic action,the piston rod bring the control ring rotation.
Product Details
Advanced CFD, FEA technic is utilized in the designing process to ensure better technical solution.
CAE casting simulation is adopted for the produciton of casting parts, this advanced and reliable process plan could help effectively improve product quality.
All raw material strictly conform to international standard, key component such as runners, guide vane is Forged and entire CNC machined.
State of the art machining and testing equipment, as well as licensed professional engineers all combined to help guarantee better product precisioness.
All product is subject to strict inspection according to international standards and client special requirements.
With the help of 3D Assembling, through motion simulation, the entire organization interaction can be seen at a glance. This helped a great deal for parts processing and pre-installation.
Each project will strictly follow manufacturying plan to ensure the delivery date.
