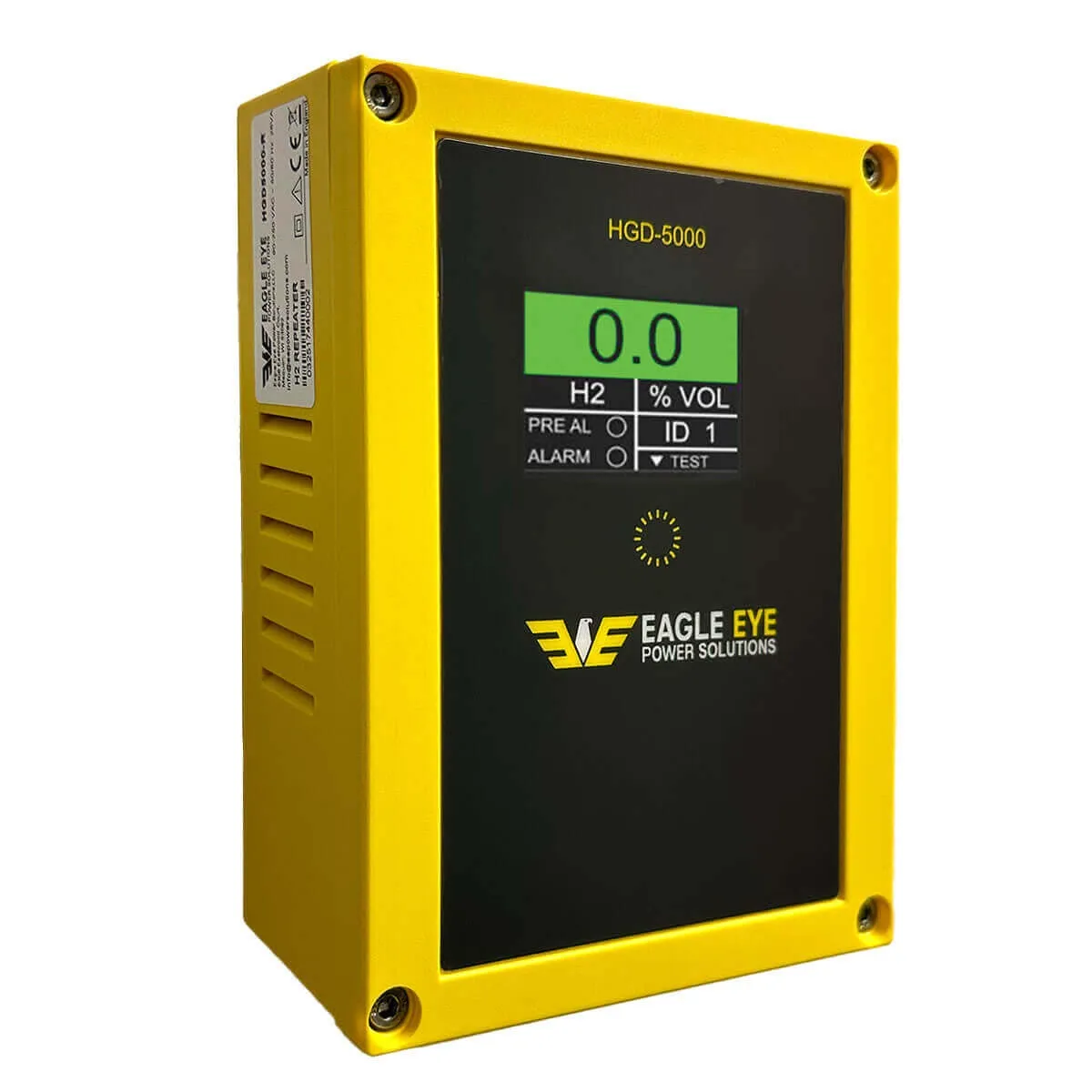

Eagle Eye - Model HGD-5000 - H₂ Hydrogen Gas Detector
The HGD-5000 H₂ Hydrogen Gas Detector is a state-of-the-art product designed to accurately and efficiently monitor hydrogen gas buildup in storage rooms and facilities that house batteries. It is actively specified by enclosure house manufacturers, substations, and engineering firms around the globe. It provides terminal block connections for single-phase 110 AC, 24VAC or 18-60VDC power. Detected Hydrogen levels are displayed in “% Vol” and traffic light indication LEDs – Green (Normal), Yellow (Warning – 1% Vol, warning relay will close, activating the ventilation fan), and Red (Alarm – 2% Vol, alarm relay will initiate an 80 dB internal warning).
Replaceable sensor with a 10-year life cycle!
- 110AC, 24V AC, 18-60VDC power supply
- 2* Internal relays for fan/alarm activation
- 2* Analog outputs
- Output to external strobe
- 4-sec alarm delay to prevent false activation
- Supplied calibrated
- Designed in the USA
The HGD-5000 is more than just a hydrogen gas detector — it’s the foundation of a comprehensive safety solution. Eagle Eye Power Solutions offers a full suite of complementary products designed to work seamlessly with the HGD-5000, including high-efficiency ventilation fans to reduce hydrogen concentration, audible and visual alarms for real-time hazard notification, sensor boards for flexible deployment, and testing kits to ensure ongoing system reliability. Together, these components provide a scalable, integrated approach to hydrogen gas monitoring, helping you meet safety requirements and protect your personnel, equipment, and facilities.
Add the HGD-5000-R Repeater Panel to your hydrogen gas detection system for convenient, ground-level visibility. This panel allows you to monitor up to three (3) ceiling-mounted HGD-5000 units, displaying real-time hydrogen levels, alarm status, and system health—without the need for ladders or lifts. It also features a manual test button for easy system checks from a safe, accessible location.
- Replaceable sensor with a long life
- 110AC, 24V AC, 18-60VDC power supply
- 2* Internal relays for fan/alarm activation
- 2* Analogue outputs
- Output to external strobe
- 4-sec alarm delay to prevent false activation
- Supplied calibrated
- Designed in the USA
- 5 year warranty
- Target Gas: Hydrogen 1% Vol (warning) 2% Vol (Alarm)
- Operating Environment: -10 – 40 °C (14 – 104 °F)
- Housing Material: ABS PA765. Flame Retardant UL 94V-1
- Display: 1.8” TFT
- Rated Voltage: 90-250 VAC
- Electrical Safety & EMC: CE / UKCA BS EN 61010-1:2010 +A1:2019. & BS EN 50270.
- Dimensions: 5.95 x 4.37 x 1.97 in
- Weight: 7.5 oz
- End-of-life Years: 10
