Imperix - Model PEB8038 -Half Bridge Module
FromImperix Ltd
SiC half bridge power module for powerful inverters; PEB8038 half bridge modules contain two power semiconductors (Silicon Carbide MOSFETs) as well as gate drive and measurement circuits. They enable engineers to rapidly implement powerful inverters to validate converter control techniques in realistic conditions. These modules are often used for 230/400VAC applications such as in experimental microgrids or similar applications.
Most popular related searches
power inverter
power electronic
power semiconductor
inverter power
three phase inverter
voltage sensor
silicon carbide
inverter
microgrid
semiconductor

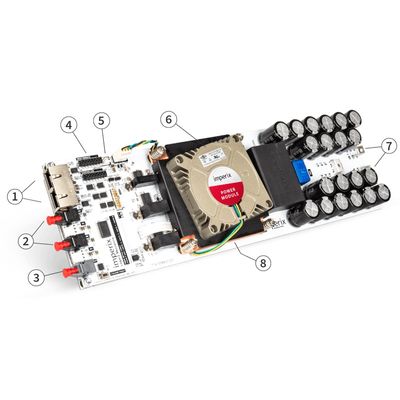

- V/I Sensors outputs (analog)
- Gate drivers inputs (optical)
- Fault output
- Board-to-board link
- Power supply (5/12 V)
- Cooling fan (120 W)
- DC link terminals
- Power switches (2x SiC MOSFETs)
Half-bridge power modules can be easily assembled together
When used to build power inverters, PEB8038 modules are ideally suited for 230/400VAC applications, thanks to their operating DC voltage up to 800VDC.
Typical operating parameters
Typical configurations
- Switching frequency: 1-20kHz.
- AC grid. voltage: 230/400VAC.
- Power rating (three-phase): 10-25kW.
- Three-phase SiC power inverters
- Programmable microgrid inverters
- Three-phase motor drives
- Synchronous buck/boost converters
- etc.
The new PEB SiC half bridge modules are truly ready-to-use power electronic building blocks, featuring:
- SiC MOSFET half-bridge (two power semiconductor switches)
- DC bus capacitors
- Current and voltage sensors (usable simultaneously)
- Integrated gate drivers
- Onboard logic and protection (desaturation, voltage, current, temperature, PSU)
- Speed regulated cooling fan (120 W TDP)
As with all imperix power modules, PEB8038 half bridge modules embed protection mechanisms such as over-current/voltage detection, which block the SiC half-bridge in case of hazardous behavior and thus ensure that its capabilities are never exceeded.
Combined with the additional adjustable protections of our programmable controller, imperix power modules are the ultimate solution for safe and efficient power electronic prototyping in both teaching and research applications.
