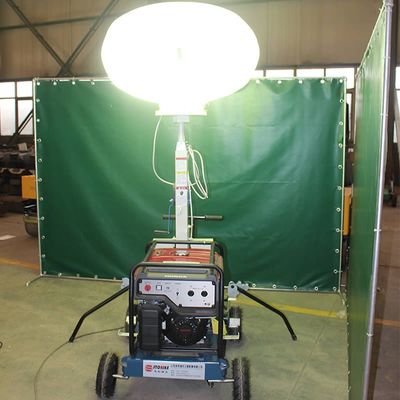

HONDA/KIPOR - Model SMLV1000QA - Hand-push Light Tower

1. Equipped with famous brand power, guarantee quality and superior performance.
2. Equipped with metal halide lights, large luminous flux and long life.
3. High-performance self-braking hand winch.
4. 3-section lifting rod, galvanized lamp post, anti-drop, corrosion-resistant.
5. Left and right windproof support frame, stable support.
6. Integrated operation panel, one-key operation.
7. 5 meters lifting height, wide irradiation range, long irradiation distance.

tem No./Details: Mobile lighting car(vehicle)
Model: SMLV-1000QA/SMLV-1000QAC
Application: Mainly used in municipal, road, building construction and other construction fields at night.
Generator Set: EC4000CX/KDE6500T
Brand: HONDA/KIPOR
Model: GX270/KM186
Type: Air-cooled, four-stroke, overhead
Fuel type: Gasoline/diesel
Name: One-way alternator
Rated voltage(V): 220
Frequency(HZ): 50/60
Maximum power(KVA): 3.6/5
Rated power(KVA): 3.2/4.5
Continuous work(hr): 11.9/7
Fuel tank capacity(L): 24/15
Generator weight(KG): 71/145
Generator size(MM): 681*530*571/910*530*740
Power* lamp quantity: 1000W*2
Luminous flux(LM): 220000
Lamp: Metal halide lamp
Telescopic lamp rack(MM): 1700-4800
Mast: 3 sections mast
Elevating mode: Hand-operated
Elevating height(M): 2.5-5.5
Anti-slope: <10°
Anti-wind: <6
Walking way: Hand push type
Weight(kg): 115/117
Quantity (sets): 1
