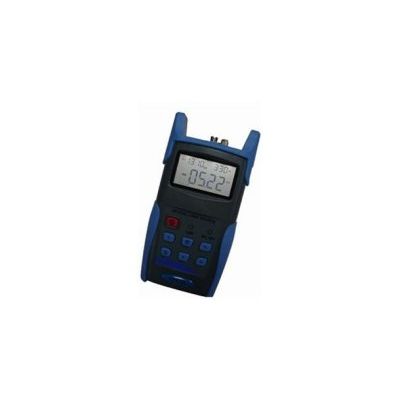

GAO - Model C0220003 - Handheld Adjustable Light Source
FromGAO TEK Inc.
This light source is designed for fiber network installation, fiber network engineering acceptance and maintenance. It provides 1 to 4 wavelengths and its output power is adjustable according to customer`s specific need. Used together with GAO`s C0260003 handheld optical power meter, it offers a quick and accurate testing solution on both single and multi-mode fibers.
Most popular related searches
- Wave ID information can be transmitted when used with GAO`s C0260003 handheld optical power meter
- Tone generation, 270 Hz, 330 Hz, 1 kHz, 2 kHz
- Adjustable output power
- Output power value is shown on LCD display
- Intelligent backlight control
- AA alkaline and AC adapter for power supply
- Low battery indication
- Operating Wavelength : 1310 nm/1550 nm; 1310 nm/1490 nm/1550 nm/1625 nm (others available upon request)
- Applicable Fiber : SM, MM
- Output Power : -7 dBm (adjustable)
- Adjustable Step Size : Less than 0.5 dBm
- Stability : 0.15 dB/30 min at 20 °C
- Modulation : CW, 270 Hz, 330 Hz, 1 kHz, 2 kHz
- Fiber Port : FC/PC
- Power Supply Adaptor : 8.4 V
- Battery Operating Time : 45 h
- Operating Temperature : -10 °C to 60 °C
- Storage Temperature : -25 °C to 70 °C
- Dimensions : 180 mm × 90 mm × 45 mm
- Weight : 250 g
