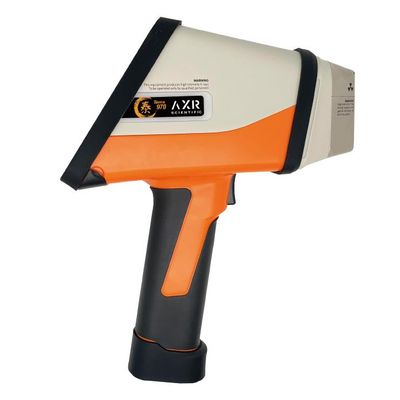

AXR Scientific - Model Terra970 - Handheld Lithium Battery Analyzer

Terra970 handheld lithium battery analyzer, based on advanced ceramic packaged microfocus X-ray tube and high-performance semiconductor detector, combined with advanced software algorithms, can quickly and accurately analyzer Ni, Co, Mn and other regulated elements in lithium batteries. It is an ideal portable analyzer for lithium battery manufacturers’ process quality control and safety precautions, and for waste lithium battery recyclers’ sorting tasks.

Terra970 Handheld Lithium Battery Analyzer Is Widely Used for

Quality Control of Battery Manufacturing

Lithium battery manufacturers need to analyze and inspect key elements in battery raw materials and raw material contact parts, such as elements of iron, silver, cobalt, zinc, copper, nickel and chromium, which are strictly limited in the electrodes. Once mixed Into the battery cathode material and they would cause battery failure, short circuit, or even explosion. And it is also used to analyze the content of Ni, Co, Mn elements in the precursor slurry powder.

Lithium Battery Production Equipment Inspection

Upstream battery equipment manufacturers need to control and inspect the alloy material composition and coating thickness of key contact components in the battery production equipment to avoid explosion accidents caused by exposure of alloy materials or metal particles falling off into the lithium battery production process.

Waste Lithium Battery Recycling and Sorting

Fast to analyzer concentration of Ni, Co, Mn and other elements in the positive electrode sheet and powder of lithium batteries. Testing of copper concentration in copper foil of waste battery anode material, testing of components in battery metal casing and powder.

Rapid on-site sorting and recycling of a large number of waste lithium batteries.

Fast and Accurate
Ni, Co, Mn and other elements can be analyzed quickly, accurately and reliably, and the analysis results can be displayed in seconds

Intuitive and Easy to Use
Large-size high-definition touch screen, graphical interface, and intuitive test results

Safe and Non-destructive
Automatic radiation protection device is installed to protect the safety of operators and not damage the samples

Simple and Lightweight
No training required, easy operation, compact design, easy to carry, can carry out inspection anytime, anywhere

• Excitation High performance Ag target tube,50kV
• Detector High performance Si-Pin detector /Optimized SDD detector
• Filter Multi position automatic filter changer
• Window Kapton with anti-puncture window design optional
• Collimator 5mm collimator
• Battery 7.2V Li-ion battery,6800mAh
• Display Capacitive touch color display
• Data storage 100000+data storage
• Data transfer WiFi?USB
• Radiation safety Safety guard device, tube shutoff while no sample , Password-protected user security
• Camera(optional) Integrated CCD camera with autofocus lens for positioning and recording measuring point positions
• Elements Ti?V?Cr?Mn?Fe?Co?Ni?Hf?Ta?Re?Cu?Zn?W?Se? Pb?Bi?Zr?Nb?Mo?Al?Pd?Ag?Sn?Sb etc. and be customized
• Environment Temp -10°C~50°C Humidity 0%~80%
• Weight Approx. 1.5kg (3.3lbs) including battery
• Dimensions L x W x H: 220mm*91mm*276mm
• Software language English and other languages
