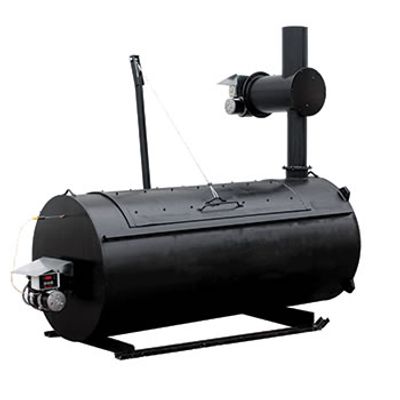

Model 428 - Heat Lined Incinerator

Dimensions 42 in. diameter x 8 ft. length. 375 tank thickness. Reinforced with 2x1 solid bar. Load capacity 1200 lb. 58 cubic foot chamber. Diesel, Propane, or Natural Gas Burner option. Voltage requirements 120 volt 60 HZ 20 Amp. Adjustable 12 hour timer. Unit is lined with repairable refractory block rated for 3000 degree temperature. Door is lined with 3 inches of ceramic fiber insulation rated for 2500 degree. temperature. Life expectancy of the liner is 5,000-7,500 hours. Main chamber is equipped with patented heat control shut off and digital read-out. controller. Unit has removable end plate for your convenience when installing a. replacement liner. Unit is equipped with a manual hand crank door opener. Loading door size is 66 in. length x 31 in. width. Unit has a burn rate of 75-100 lb per hour when loaded properly. Includes 3ft x 6in sch 40 exhaust stack. Burning temperature 1325-1400F. Shipping weight is 3450 lb.
