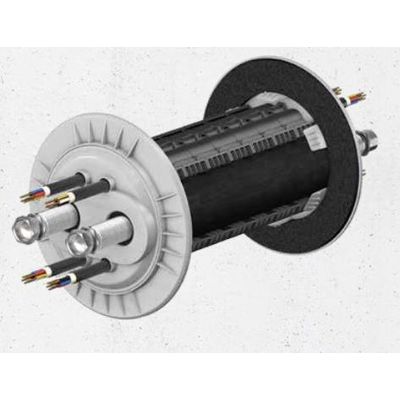

Doyma - Model DOYMAfix Connect HP/O -Heat Pump Inlet
FromDoyma GmbH & Co.
RESISTANT TO DRIVING RAIN: Wall duct for above-ground external building walls. Use in various wall structures for air-to-water heat pumps with integrated thermal insulation with ready-to-connect corrugated stainless steel hoses.
Most popular related searches
- Completely ready for connection with DN25 or DN32 stainless steel corrugated hoses including insulation
- Can be used in both new and existing buildings
- Assured thermal insulation - fulfilment of the GEG subsidy
- Aesthetic wall transition with attractive surface finish
- Can be used universally in all common wall structures
- Segmental design enables individual length adjustment to structural conditions
- One-person installation
- Installation can be carried out directly after wall completion
- Separate routing of pipes and cables
- Separate routing of power and control cables
- Thermal separation avoids thermal bridges
- Contact surface for flat connection of the 200% external insulation
- Bird-proof construction
- Low weight facilitates installation
- Quick and easy installation saves time
- Cross-trade installation (shell construction, electrical, HVAC) creates flexibility in the construction process
- Airtight according to DIN EN 13829
- Gas-tight - installation within the R290 protection zone possible.
- Tight against splash water, IP44 to DIN EN 60529
- Sound insulation in accordance with DIN 41092
- Corrosion-free component
- Stainless steel corrugated hoses incl. insulation
- Internal and external sealing
- Variably adaptable sealing elements for the pipework
- Flexible cable seals
- Plug-in connection segments
- Expansion foam for filling cavities
- Intermediate segment (set of 4) for walls > 500 mm
- Expansion foam (500 ml) for walls > 500 mm
- Compriband (3.3 m) for sealing on uneven wall surfaces.
- Sealing set (4 sealing plugs) for refrigerant pipes (split)
