Bryant Heating and Cooling System

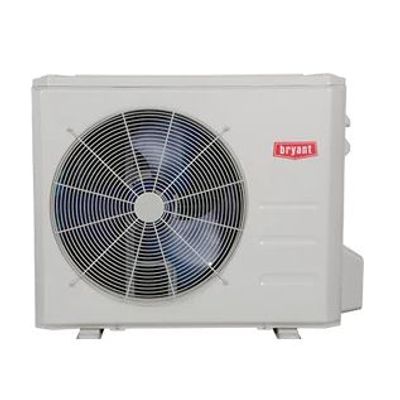

Evolution - Model 38MPRA - Heat Pump with Basepan Heater
If maximum performance and efficiency are key, look no further than our Evolution™ System heat pump. This ENERGY STAR® qualified ductless system comes with a 42 SEER rating when paired with the 619PHA High Wall – there’s nothing more efficient1! Even when temps drop to as low as -22° F outside, your interior environment stays cozy (when properly sized and matched with specific indoor units). Powerful yet quiet, our best ductless outdoor solution delivers results.1 According to system ratings maintained by AHRI as of January 22, 2018, in accordance with the AHRI Unitary Small Equipment Operations Manual. The 9,000 Btu/h single zone ductless has a 42 SEER Rating.
Most popular related searches
heating and cooling system
heat pump
heating and cooling
inverter
heat pump system
inverter technology
energy production
- Energy Star® Qualified : All sizes qualified
- SEER Efficiency : Up to 42.0
- HSPF Efficiency : Up to 15.0
- 100% Heating Capacity at 0° F (-17° C)
- 100% Cooling capacity at -22° F (-30° C) without additional kit
- Up to 75% of Heating Capacity at -22° F (-30° C)
- Inverter Compressor
- Up to 42.0 SEER cooling efficiency
- Up to 15.0 EER heating efficiency
- Available in 208/230V
- Sizes: 09 / 12
- Built-in basepan heater
- Auto-restart function
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 55 dB(A)1
- Anti-corrosive fin coating
- 10-year parts limited and 10-year compressor limited warranties to the original purchasing owner upon timely registration2
1 Quietest size within each model group during most common cooling operating condition.
2 If properly registered within ninety (90) days after original installation, parts are warranted to the original purchaser for a period of 10 years. Otherwise, parts warranty is 5 years. For other applications a 7-year parts and 7-year compressor limited warranties apply. See warranty certificate for details.
EFFICIENCY
- Up to 42.0 SEER
- Up to 15.0 EER
- Up to 15.0 HSPF
PERFORMANCE
- Outdoor sound: as low as 55.5 decibels1
- OUTDOOR OPERATING RANGE
- Cooling operating range -22° ~ 122° F (-30° ~ 50° C)
- Heating operating range -22° ~ 86° F (-25° ~ 30° C)
LINE LENGTH
- Piping length 98 ft (30m)
TECHNOLOGY
- Inverter Compressor
CAPACITIES
- 0.75 – 1.0 Ton
REQUIREMENTS
- 208/230V
AESTHETICS
- Heavy-gauge, galvanized steel construction
- Primed and coated with a 100% coverage, baked-enamel finish in white
