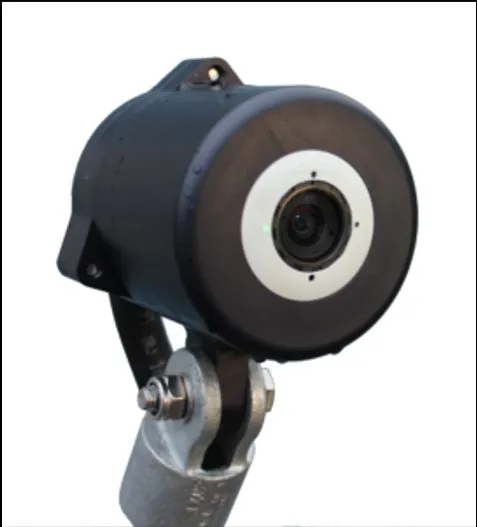

Model IceEyes - Heated Cameras for Harsh Environments
The IceEye heated camera system is used for complete surveillance and monitoring in harsh environments. A versatile two camera system can be used for an array of applications including but not limited to: ice detection on power lines, validation of measurements and as live web cameras for on-demand image capturing. The heated camera system is capable of taking high resolution pictures in remote places during extreme weather conditions. The two cameras provide the possibility for multiple views with different lenses.
High resolution in extreme weather!
The IceEyes heated camera is suitable for:
- Ice detection on power lines
- Validation of measurements
- Live web camera
Camera resolution: 320×240 to 3037×2048 pixels
Image sensor: 1/1.8″ CMOS 6 MP or 4k
Lens models: 35 mm eq. 10 mm – 270 mm
Interface Ethernet: 10/100 Mbit, MiniUSB
Video output: NTSC, PAL
Power Supply: 24 VDC
Consumption, heating off: 9.5 VA
Consumption, heating on: 115 VA @ full heating, 2 cameras
Operating temp. range: -30 to +50 °C
Housing: Coated aluminium
Mounting rod: Ø33.7 mm
Waterproof rating: IP67
Weight: 5 kg
