Regin AB

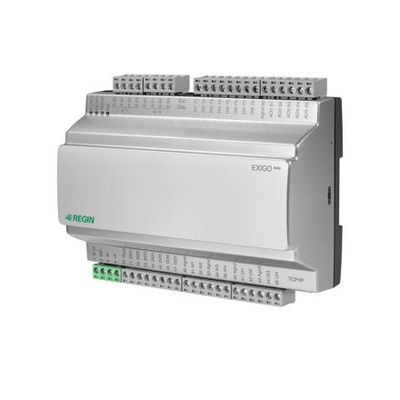

Exigo Ardo - Model HCA152W-4 - Heating Controller
FromRegin AB
Exigo Ardo are controllers for heating and boiler control that make every step from installation to operation and maintenance easier than ever. Simply connect the controller, enter any settings as desired and start up. It can be used either stand-alone or integrated into a network. It has built-in support for many different languages and is designed for mounting on a DIN-rail or in a cabinet door.
Most popular related searches
- Dimensions, external (WxHxD): 149*121*60 mm
- Display: No
- Supported protocols: EXOline, Modbus, BACnet
- RS485 ports: 1
- Ethernet ports: 1
- Display ports: 1
- AI: 4
- UI: 0
- DI: 4
- CI: 0
- AO: 3
- UO: 0
- DO: 4
- Analogue inputs type (AI): PT1000/Ni1000/Ni1000LG/0-10 V
Specifications for Exigo Ardo - Configurable 24 V heating controller
- Power Supply: 24VAC/DC (21...27 V AC 50/60Hz / 20...36 V DC), 9.0 VA
- Battery type: CR2032 replacable Lithium cell
- Battery life time: 5 years
- Protection class: IP20
- Ambient temp: 0…50 °C
- Storage temp: -20…70 °C
- Mounting: DIN-rail
- Terminal type: Screw Terminal
- Deteachable terminal: Yes
- Terminal wire size: 3 mm²
- Material, housing: Polycarbonate (PC)
- Material, base: Polycarbonate (PC)
