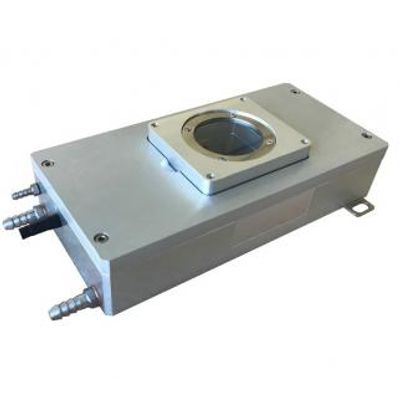

Microptik - Model MHCS121 - Heating & Cooling Stage

SHARE
MicrOptik’s MHCS120 series are Peltier based temperature controlled heating and cooling stages. The MHCS120 stages are an ideal instrument for optical thermal microscopy and spectroscopy applications as well as for other general applications where an optimum optical access and the temperature control are required. The MHCS120 can be easy incorporated into any complex high-tech setup and it is the best solution for Geological, Biological, Chemical, Fluid Inclusion, Semiconductor, Photovoltaic, or other Materials Science applications
Most popular related searches
heating and cooling
thermoelectric technology
photovoltaic material
photovoltaic
semiconductor

MicrOptik’s MHCS121 stages are developed for a temperature range from -20°C to 120°?. The MHCS121 stages supplies with high precision MTDC600 programmable temperature controller. MTDC600 temperature controller can be operated by Software or Manually. It makes the system more adaptive and flexible. To provide a stable temperature below 0°C MC-5L water chiller is provided.

MicrOptik’s Thermal Stage MHCS121 provides cooling up to -20°C without liquid Nitrogen cooling system or refrigerated circulators. This feature makes system more simple and cost effective. Furthermore the usage of Thermoelectric Cooling Technology makes MHCS121 as a convenient system for continuously usage during long experiments. The compact and simple design allows the stage to be positioned on any XY table, allowing the user to carry out all sorts of experiments in the most convenient manner.
  • Controlled temperature range around 0.1°C
  • Programmable temperature controller
  • High precision and high resolution temperature measurement and control
  • Software or manual control
  • Wide range of viewing apertures
  • Removable cover for easy sample access
  • Removable and exchangeable windows
  • Wide range of the sample chamber height
  • Large viewing aperture
  • Sample liading with standard microscope slides
  • Horizontal and vertical mounting
  • Water cooling frame

The MTDC600 is a high performance temperature controller with resolution and accuracy 0.1°C. The controller MTDC600 has a built-in power supply and can be controlled manually or through a USB2.0 communication port. Software provides a convenient platform for all possible experiments. PID parameters, temperature limits and control essentials can be easily selected through the relevant menus.

Temperature range: -20°C to 120°C (-40°C to 120°C per request)*; *operations below -20°C require water chiller MCH-5L
Temperature resolution: 0.1°C
Temperature control method: Switching PID-PID
Temperature control sensor: RTD
Sample area: 40mm x 40mm (other sample area optional)
Chamber height: 30mm (other per request)
Sample viewing aperture: 30mm (other per request )
