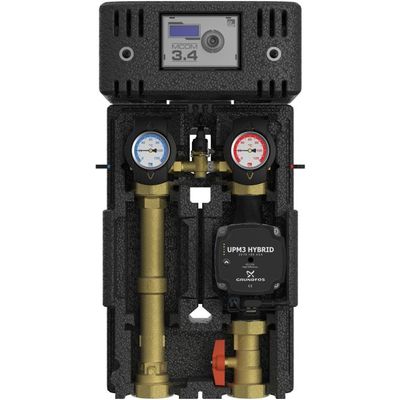

HeatBloC - Model MC41 - DN 25 (1 Inch) -Heating Technology for Energy Monitoring
EnEV-compliant hydraulic balancing on the distribution manifold. No under- or oversupply of individual heating circuits. No loss of comfort. Easy commissioning of the system. Easy system monitoring via free app. Cost monitoring via app. Possibility to obtain governmental subsidies. Easy integration in already existing heating systems. Balanced system in each operating point. Autarkic control system: The HeatBloC®s MCom adjust the revolution speed of the pump, the boiler control switches the pumps on and off and regulates the flow temperature.
Most popular related searches
- direct / unmixed
- with integrated controller
- Application range: for boiler charging, for modulating temperature heating
- Recommended application range: up to 50 kW; 20 K up to 2150 l/h
OPERATING DATA
- Max. operating temperature: 110 °C
- Differential pressure sensors: 0-600 mbars
- Dial thermometer: 0 - 120 °C
- Output: 50 kW
- Max. operating pressure: 6 bar
- Temperature difference: 20 K
- Kvs value: 7,2
- Flow rate: 2150 l/h
EQUIPMENT
- Controller MCom 3.4: 24 Vdc, max. 200 mA Interface: Modbus RTU (integration into building control and SmartHome systems )
- Check valves: 1 x 200 mm wc
- Dial thermometer: 0 - 120 °C
- Shut-off valves: Ball valves with handle
- Temperature sensors: 1x Pt1000 in the flow and return
- Differential pressure sensors: 0-600 mbars
DIMENSIONS
- Height: 500 mm
- Width: 250 mm
- Nominal diameter: DN 25 (1")
- Installation length: 340 mm
- Connection generator: 1½" ext. thread, flat sealing
- Connection consumer: 1" int. thread
- Centre distance: 125 mm
MATERIALS
- Valves and fittings: Brass
- Gaskets: EPDM
- Insulation: EPP
