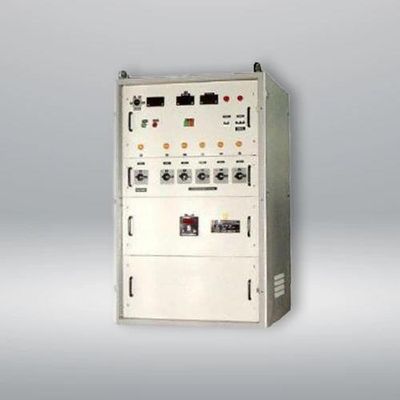

Sudharsan - Model 5V / 4000 AMPS - Heavy Ac Current Injection Source
A Heavy Current Injection Source, with a rating of 5V and 4000 Amps or higher, such as Type SI/PIK-20 and above, is a specialized testing instrument used in various applications, including electrical system testing, protection relay testing, and fault simulation. It provides a high-current output to simulate fault conditions, verify the operation of protective relays, and assess the performance of electrical equipment.
Most popular related searches
protection relay test
protective relay testing
protective relay
current transformer
electrical equipment
electrical system
relay test
relay testing
electrical testing system
- Continuous or short time rating with timer.
- Digital panel meters for incomer volts / Output Volts / Amps.
- Input protection by MCB
- P.B. operated contactor.
- Rotary switch selection of 1st stage fine adjustment with 2 phase variac and subsequent stages with addition of stepped voltage.
- Copper or Aluminum heavy duty busbars.
- Forced air cooling with fans
- Dual or multiratio current transformer.
- Front and Rear panel protection by hinged lockable doors.
- Assembled in a prefabricated enclosure on castor wheels.
- 1050 x 800 x 930 mm: Weight: 270 Kg
- Primary injection test
- Temperature rise tests on busbars.
- Input : 440V , 50Hz
- Output : 0 – 1.25V / 4000A continuously adjustable for stage I, and Additional steps of 1.25 / 2.5 / 3.75, 4000Amps for subsequent stages 2 to 4
- Rating : continuous or short time rating with timer as specified.
