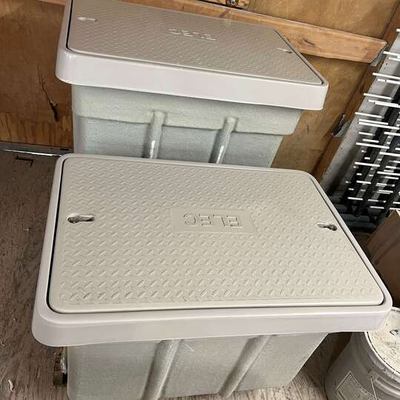

CIF - Model Pro-Eco-Lite 33 Series -Heavy-Duty Junction Boxe
3336PLL-AE: 914 mm (36") deep bottom cut-out junction box with locking. Approximate weight = 165 lbs. 3324PLL-AE: 610 mm (24") deep bottom cut-out junction box with locking lid. Approximate weight = 145 lbs. CIG8-L: Change in Grade (8" Locking Riser). Approximate weight = 36lbs.
Design: Durable composite material reinforced with polymer concrete. Tier 22 load-rated (as per CSA) and skid-rated (as per ANSI) lids.
Features: Manufactured with all non-corrosive materials, non-conductive, and suitable for various electrical applications. Locking tamper-resistant lids with support cups for wire hangers.
Benefits: Prefabricated, easy to install, performs well in hot/cold climates, gravel, boulevards, concrete/asphalt driveways, sidewalks and parking lots.
Options: Change in grade locking risers. Available in 3 different series with 5 models available COMM, ELEC and custom lid moulds.
Certifications and Patents: Tier 22 load rating box and lid complete (CSA standard C22.2)
