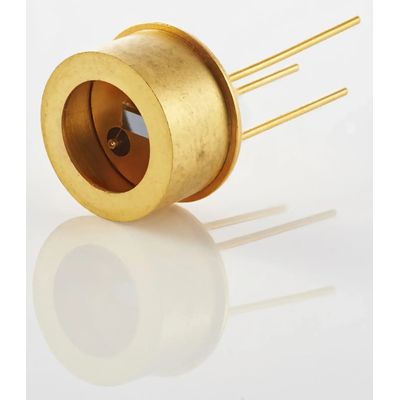

VIGO Photonics - Model PC-9-AF1×1-TO39-NW-90 - HgCdTe (MCT) Photoconductive Detectors
FromVIGO Photonics
PC-9-AF1×1-TO39-NW-90 is uncooled IR photoconductive detector based on sophisticated HgCdTe heterostructure for the best performance and stability. In order to make this detector immune to unwanted optical fringing effects, VIGO developed anti-fringing technology (internal modification of substrate’s surface) and successfully applied it. This results in the fringing 10 – 40 times smaller compared to the standard IR detector.
Most popular related searches
- Anti-fringing technology applied
- Significant fringing reduction for 2.2 – 8.2 µm spectral range
- Large active area
- Excellent linearity
- CO2 laser measurements
- Laser power monitoring and control
- Laser beam profiling and positioning
- Laser calibration
- Parameter : Value
- Active element material : epitaxial HgCdTe heterostructure
- Cut-on wavelength λcut-on (10%) µm : 2.2±0.1
- Peak wavelength λpeak, µm : 8.2±0.1
- Cut-off wavelength λcut-off (10%) µm : 10.6±0.2
- Detectivity D* (λpeak 20 kHz), cm⋅Hz1/2/W : ~1.4×107
- Current responsivity Ri (λpeak, 20 kHz), A/W : ~0.0007
- Time constant τ, ns : ~2
- Resistance R, Ω : ~40
- Bias voltage Vb, V : ~0.4
- 1/f noise corner frequency fc, Hz : ~20k
- Active area A, mm×mm : AF1×1
- Package : TO39
- Acceptance angle, Φ : ~90°
- Window : none
