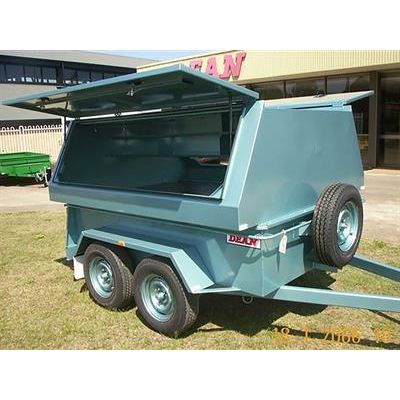

Dean - Model 28W - Hi-Top Wide Body Tradesman Trailer

CAPACITY

• Load capacity: 0.4 tonne
• ATM: 0.75 tonne
• Tare Weight: 0.35 tonne

DIMENSIONS

• Length Overall: 3.35m
• Width Overall: 1.75m
• Tray Size: 2.1m long x 1.2m wide
• Canopy: 1.1m high above tray floor

SPECIFICATIONS

• Tailgate: Bottom hinged with internal barrel bolt locks
• Tie Rails: 25mm diameter tube welded to front and sides
• Suspension: AL-KO independent rubber suspension
• Wheels: 14 x 5 Ford 5 stud - white
• Tyres: 195/75R14C light truck tyres
• Mudguards: Welded to tray
• Mudflaps: White with Dean logo
• Jockey wheel: Swivel 150mm type on drawbar
• Coupling: Fixed 50mm quick release ball with safety chain
• Lighting: All LED multi-volt combination lamps
• Electrical Connection: Flat 7 pin plug
• Brakes: Unbraked
• Canopy: Twin top hinged doors with dual gas strut supports and dual locks each side
• Racks: Ladder/material on roof
• Wide body: Canopy is to mudguard width with false interal floor
• Internal shelving: Two shelves each side

EXTRAS

• Optional extras: Mounted spare wheel and tyre
• Mechanical override brakes
• Electric brakes
• Additional internal shelving
• Full galvanised finish
