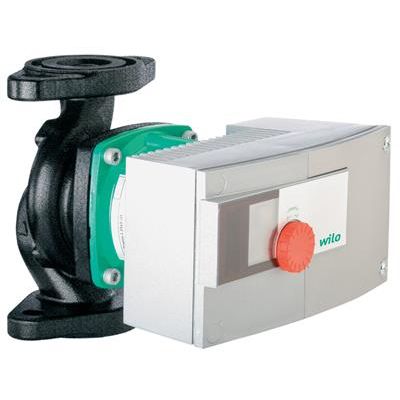

Stratos - High Efficiency Circulators Pump
From Building Services Products
ECM motor technology reduces energy consumption by up to 80%. ‘Red Button’ technology and LED display. 3 times higher starting torque than a standard circulator. On-board diagnostics and data logger. Multiple control modules available for integration with building management systems.
Technical Data
- ΔP-V or ΔP-C constant speed control modes standard. ΔP-T available with IR device
- Temp Range: 14°F to 230°F (-10°C to 110°C)
- Electrical Connection: 1~208/230v (+/- 10%)
Application
- Hot Water Heating Systems
- Closed Cooling Circuits
- Air Conditioning Systems
- Hydronic Heating & Cooling
- Water/Glycol concentrations up to 50%
- Solar / Geothermal
Max. Flow:285 USGPM
Max. Head:43 feet
Materials of Construction
- Cast Iron, Cataphoresis Coated Volute
- Fiberglass Reinforced Plastic Impeller
- Stainless Steel Shaft
- Carbon, Metal Impregnated Bearing
