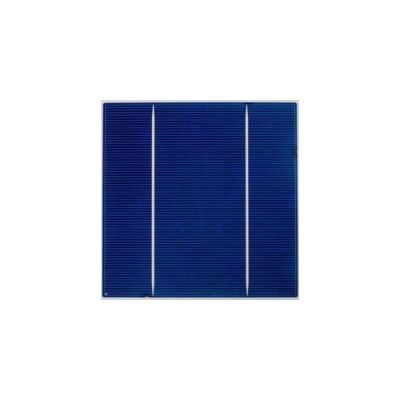

DouroModel GIN156M -High Efficiency Multicrystalline Solar Cell

SHARE

More than 1GW installed in Europe and the world major markets since 2006.Optimized fine line printing provide higher fill factor and lower series resistivity, performance elevated!All products passed in-line optical inspection.100% inspected for shunt resistance and reverse current.Regularly monitor product performance and soldering properties.Excellent mechanical performance proven by all customers. Less power deviation of modules ensured by precise matching of cells, sorted 100% in narrow current classes at constant test voltage. All products conform to the regulation of RoHS.

Most popular related searches
  • Dimensions : 156mm x 156mm ± 0.5mm
  • Thickness : per wafer ± 10% μm
  • Front : SiNx anti-reflecting coating,Color: Indigo, Dark Blue, Blue,2 bus-bars in 1.9mm ± 0.1mm, width,Distance between bus-bars: 75mm,Negative pole [-]
  • Back :Aluminum backs surface field,2 bus-bars in 3.0mm ± 0.1mm width,Distance between bus-bars: 75mm,Positive pole [+]
