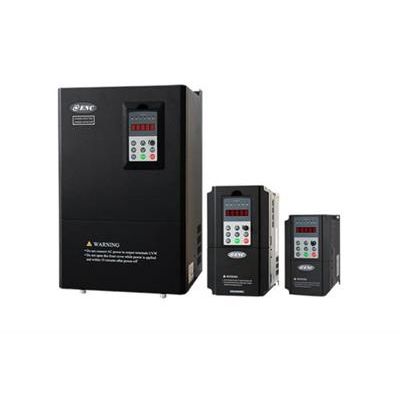

ENC - Model EN600 Series -High Performance Flux Vector Type Frequency Inverter
Adopt 32-bit DSP (digital signal processor) hardware platform, advanced control algorithm, PG closed loop vector control and sensorless vector control, with both speed vector and torque vector control working methods. It can quickly limit impact current, and could be widely used in high-end manufacturing. This series with high control precision, fast response, superior low frequency characteristic, intelligent detection and protection, has a wide range of network function and friendly user habits, abundant peripheral bus expansion, terminal expansion, relay expansion, analog expansion etc.
-
Multiple control modes
Including sensorless flux vector control, closed loop vector control and optimized V/F control. It with both speed control and torque control.
-
Superior performance
Adopt excellent flux vector control algorithm with high control precision, fast response, and superior low frequency characteristic. ±0.5% rated synchronous speed (without PG vector control); ±0.1% rated synchronous speed (PG vector control); ±1% rated synchronous speed (V/F control); compact structure, high power density, convenient installation, and high cost performance.
-
Powerful functions
Original self-learning function, speed tracking, CANOpen, CANLink, Profibus, Modubus, free port protocol, local LED single display keyboard, double display keyboard, local LCD keyboard, remote control LCD keyboard
-
Multiple protections
Intelligent protection and detection, with input / output phase loss protection, output phase short circuit protection, output to the ground protection, and abundant peripheral expansion function for bus, terminals, relays, and analog.
-
It is widely used in fans, constant torque and impact loads
The speed fluctuation is small and meets the requirements of various high-precision occasions. PG vector control ±0.1% rated synchronous speed, without PG vector control ±0.3% rated synchronous speed
With both speed control and torque control modes
Fast torque response, without PG vector control ≤20mS, PG vector control ≤10mS
More powerful functions, instantaneous power down no shut down function, speed tracking and restart function, droop control, torque control function, etc.
Intelligent fault diagnosis, alarm and protection functions to ensure maximum reliability of the machine
The keyboard can upload and download parameters, both local keyboard and remote control keyboard can use network line cable to connect with frequency inverter.
Widely used in various industrial fields
