Preen - Model AFV-P Series - High Performance Programmable AC Power Source
The AFV-P Series offers a versatile programmable AC power source equipped with DC output and precision measurement capabilities. Designed for diverse applications in commercial, defense, and aerospace sectors, this compact unit provides clean power with a total harmonic distortion (THD) of less than 0.3% at frequencies between 5 and 100 Hz. It supports an output voltage range of 0-310 V and frequency range of 15-1000 Hz, with options extending to 5-2000 Hz. It fits the demands of automated test equipment, design verification, and mass production environments. Supporting high inrush current testing, AFV-P can deliver up to nine times peak current of its rated output, essential for electric motor tests. The unit facilitates user-defined transient waveform simulations, aiding in compliance and immunity testing. Communication interfaces include USB, Ethernet, RS232, RS485, and optional GPIB and analog controls. The AFV-P Series combines a user-friendly touch screen, rapid response times, and comprehensive programming software, making it an effective solution for power testing needs.AFV-P Series is a programmable AC power source with DC output and precision measurement. This compact power source provides clean power with THD less than 0.3% at 5-100 Hz and it delivers output voltage of 0-310 V and frequency of 15-1000Hz (opt. 5-2000 Hz). It is ideal for commercial, defense and aerospace test applications from quality assurance, design verification, ATE to mass production.

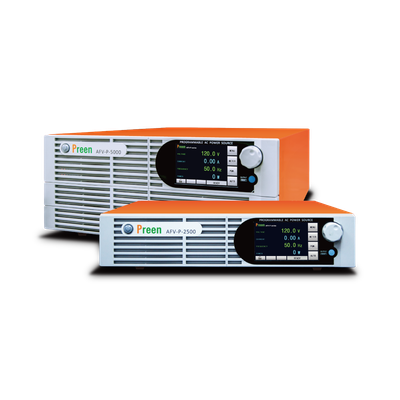

2U/4U
Compact Sizes
2U : 600VA / 1250VA / 2500VA
4U : 5kVA
9 times
High Inrush Current
AFV-P-600 and AFV-P-1250 are capable of delivering up to 9 times of peak current, which is suitable for verifying ATX 3.0 standard
≦0.3%
Low THD
Total Harmonic Distortion is only under 0.3 % when output power is under 100 Hz
AC&DC Output
AC source with DC output
One machine with AC Output and DC Output to extend more applications
0-310V
5-2000Hz
Wide Output
Wide output Voltage and Frequency ranges.
≦300uS
Fast Response Time
The slew rate less than 300 µs from 0~90% output voltage

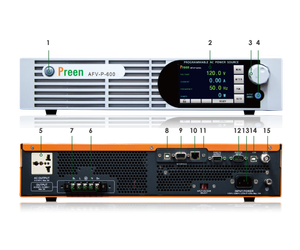

- Power Switch
- Touch Screen HMI
- Rotary Knob
- Output / Reset
- AC Output Socket
- Output Terminals
- Remote Sense
- USB Interface
- RS-232 / RS-485
- Ethernet Interface
- Input Voltage Selector
- PLC Remote In/Out
- Input Socket
- USB Interface
- Sync. Signal I/O
