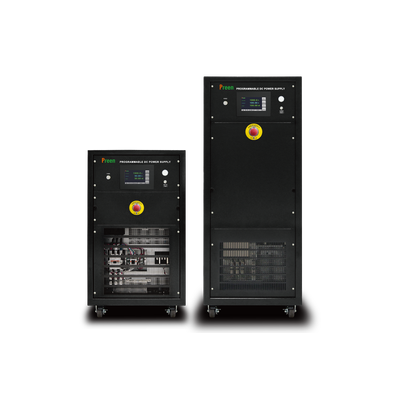

Preen - Model ADG+ Series - High Power Programmable DC Power Supply

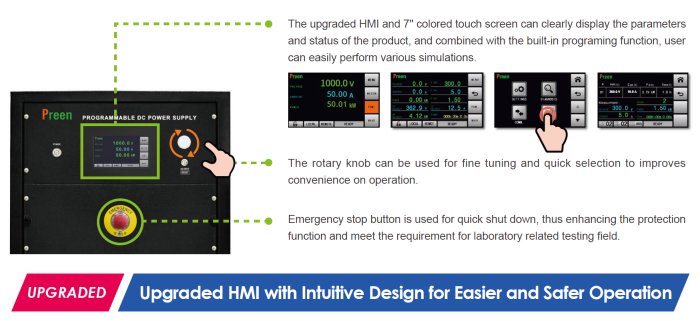

The ADG+ Series, a high-performance DC power supply from Preen, delivers precise and stable power output crucial for various demanding applications. Its modular design supports power outputs up to 300kW per unit, expandable to 1800kW through master-slave configuration, offering significant flexibility in high-power setups. The series provides output voltages up to 2000V, catering to applications such as electric vehicle motors, DC/DC converters, and energy storage systems. The incorporation of solar array simulation via an I-V curve functionality allows it to emulate solar panel behavior effectively, supporting grid-tie inverter testing in both static and dynamic modes. The device also features a user-friendly touch screen interface, intuitive rotary controls, and compatibility with various communication interfaces, enhancing user interaction and control. Remote sensing compensates voltage drops, while optional software aids in monitoring and analysis, further empowering users in both industrial and laboratory environments.Preen's ADG+ series is an upgraded high power DC power supply, featuring low ripple, high accuracy and fast response. It can simulate various characteristic of solar array with the optional I-V curve function. The Output power is up to 300kW per unit with the patented modularized design and easy mater-slave parallel operation, With the output voltage up to 2000V, making it the ideal choice for applications like EV motor, DC/DC converters, ESS and inverters.
Preen's ADG+ series is an upgraded high power DC power supply, featuring low ripple, high accuracy and fast response. It can simulate various characteristic of solar array with the optional I-V curve function. The Output power is up to 300kW per unit with the patented modularized design and easy mater-slave parallel operation, With the output voltage up to 2000V, making it the ideal choice for applications like EV motor, DC/DC converters, ESS and inverters.
30kW-300kW
High Output Power
30kW/50kW
75kW/100kW/300kW
≦0.05%
Low Ripple
≦6~20ms
Fast Transient Response
2000V
Max. Output Voltage (Single Unit)
IV Curve
Solar Array Simulation
>90%
High Efficiency
