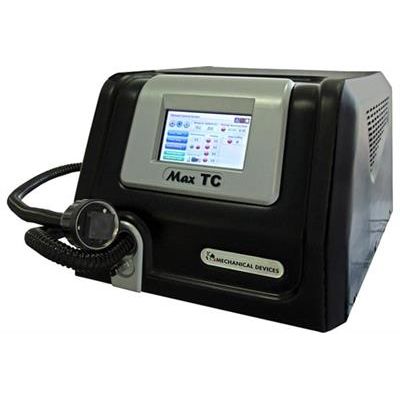

Mechanical Devices - Model MaxTC G4 - High Power Temperature Forcing System
NEW G4– MaxTC is our premium Temperature Forcing System product, specifically designed for industry needs as a result of customer´s feedback from the Flex-TC. Its powerful cooling force (90W @ -40°C), rapid transition rates (75°C /min) and remote control capabilities will provide solutions to all semiconductor testing needs. MaxTC is compact, ultra quiet (55 d BA) and fits into any laboratory. A premium product at amazing value.
Most popular related searches
- Temperature range of -70°C to +175°C / +200°C
- Temperature accuracy of ±0.5°C
- Maintenance-free system
- Rapid temperature cycling rates (75°C/min Max, not on the entire range)
- Compact Footprint – Small enough for any lab environment.
- Ultra-quiet operation
- Self-contained system – No external chiller and no compressed air required
- Fluid-free operation
- Software Calibrated
- Suitable for testing socketed and soldered devices
- Integrates with existing sockets on the market (with all brands)
- Packages supported: BGA, FCBGA, LGA, QFN, QFP, CSP, WLCSP, Bare die and more
- Environmentally friendly operation
- Low cost of ownership
- Maximum Temperature : +175ºC / +200ºC
- Minimum Temperature : -70ºC
- Temperature Accuracy : < 0.5º C
- Typical Transition Rates : 25ºC to -40ºC in, < 2 minutes
- 25ºC to 125ºC in, < 1 minutes
- Temperature Sensor : Tcase PT100 Thermisor/ K-type thermocouple
- Thermal-Diode through the Ethernet port/
- Thermal-Diode through the Analog port
- Remote Interface Ports : Ethernet (TCP / IP)
- System Indicators and Fail-safes : Thermal head over temperature, Fans operation,
- Cooling units operation
- DUT Pressure Force : 2 - 100 Kg / Force
- DUT Dimensions : > 2 x 2 mm
- DB Rating : 55 d BA
- MTBF : 70,000hr
