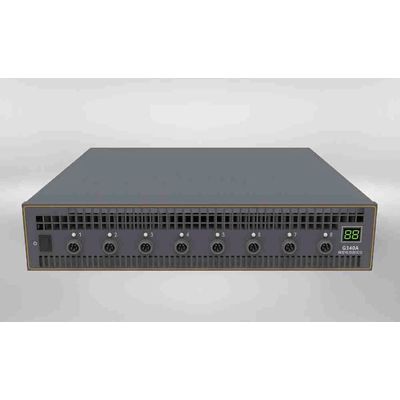

Landt Instruments - Model G340A -High Precision Battery Test Equipment

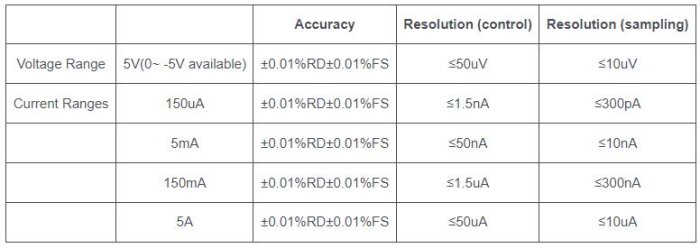

The multi-current range battery test systems M340A and G340A are designed for precision battery charge/discharge test, coulombic efficiency (current efficiency) test and supercapacitor test. Voltage and current test accuracy go down to 0.01% of the selected range. The sampling rate can go as high as to 0.01S (100Hz) with minimum pulse interval of 2mS.
Most popular related searches
battery testing system
battery testing
battery test equipment
discharge test
battery system
energy storage research
energy storage
battery discharge
power network
supercapacitor
- Support half cell, three-electrode cell (with reference electrode) in the voltage range of 0~5V, current range 100uA to 5A
- High rate charge and discharge tests. With 100C (0.6min) charge/discharge, the inaccuracy of capacity is less than 0.1%
- Pulse test with minimum of 2mS
- Full measurement records of voltage, current, coulombic efficiency, capacitance, internal resistance (DCIR) and more for precision energy storage materials research
- Integrated UPS (uninterruptible power supply) and data storage to prevent data loss during a power failure, network problem or other unexpected circumstance
