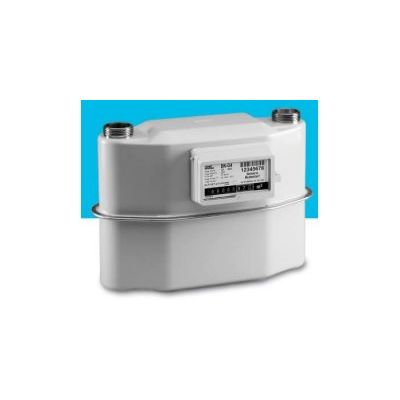

Model BK-G4 and BK-G4T -High Quality Residential Diaphragm Gas Meters
The residential diaphragm gas meter BK-G4 meet the highest demands with respect to accuracy of measurement and safety. It incorporates both innovative features and gas measurement know-how of many decades. The BK-G4 is supplied in folded form as co-axial and two-pipe version. The stroke of the diaphragms is pneumatically stopped and therefore ensures both low bearing loads and a quiet operation. The synthetic diaphragm is dimensionally stable and stadium shaped. High-grade materials and components as well as the patented curve K-System ensure a high quality standard.
The K-System perfectly coordinates the movement of the valves with the actual gas flow to the measuring chambers. This ensures excellent linearity even with utilizing small valves.
Due to the optimised slides, Qmin of BK-G4 is stable and the gas meter is not susceptible to contamination (RPF 0.65 to BS4161). The measuring unit is adjusted by a patented needle-and-scale system.
Although the design of the BK-G4 is very robust, the gas meters are still measuring instruments and as such should be handled with care.
Operating principle: Four measuring chambers are separated by synthetic diaphragms.
The chambers are filled and emptied periodically, and the movement of the diaphragms is transferred via a gear to the crankshaft. This shaft moves the valves, which control the gas flow. The rotations of the gear are transferred via a magnetic coupling to the index.
The temperature compensation facility of the BK-G4T ensures via a bimetallic element that the stroke of the diaphragms is adapted to the current gas temperature.
- MID conformity approved by PTB
- Approved to EN 1359 by German DVGW
- EU Approval by German PTB
- Flow rates from 0.04 m3/h to 6 m3/h
- Cyclic Volume 2 liters
- Firesafe (HTB) up to 0.1 bar according to EN 1359
- Maximum working pressure 0.5 bar
- High accuracy and long-term stability
- Powder coated pale grey to RAL 7035
- Standard pulse magnet; retrofi table LF pulser (l=0.01 m³/pulse)
- Not susceptible to contamination (RPF = 0.65)
- Temperature range: Standard: -10 °C to +40 °C, other temperatures on request
- Temperature compensation available
- Intelligent index technology, Chekker system, Absolut-ENCODER and radio applications
