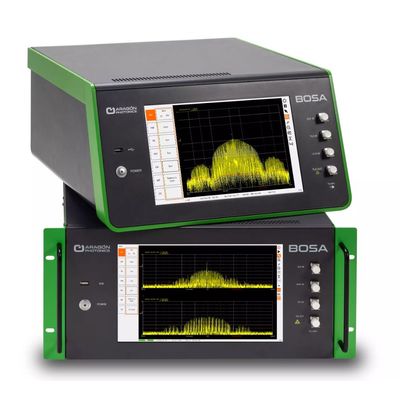

BOSA - High Resolution Optical Spectrum Analyzer
Aragon Photonics produces the most advanced and versatile High Resolution Optical Spectrum Analyzer, the BOSA. Thanks to our unique optical filtering and full spurious free dynamic range the BOSA achieves reliable measurements avoiding artifacts and undesired effects on your measurements. Thanks to our strong commitment in R&D, Aragon Photonics offers diferent models of BOSA. With or without internal Tunable Laser Source (TLS), and even with two internal TLS’s in one box, an important product porfolio of high resolution spectrum analysers is available. The covered range includes the O, S, C and L bands, thus being a unique product in the market.
- Pure optical resolution: 0.08 pm (10 MHz)
- Wavelength accuracy: ±0.5 pm
- Spurious-free dynamic range >80 dB
- Wavelength range: O, S, C & L bands
- Scanning speed: 20 nm/s
- Upgrade with:
Peak analysis function
It allows you characterize a comb in a second and export the data in a csv file.
Variable resolution
Get results more easily comparable with your old OSA.
OSNR measurement
Configure the width of the signal and noise, and the distance between them and automatically get the OSNR value.
Power integral
Allows measuring the total power of the signal in a user-defined portion of the spectrum.
Trace locking
Uses an automatic or user defined portion of the spectrum for reference to lock traces.
Dual-channel polarization
Allow seeing the separate orthogonal polarization components of the signal simultaneously.
Easy automation
Control your BOSA remotely through GPIB or Ethernet using SCPI commands.
24 / 7
Robust enough to work fulltime during a week
Easy programming
Compatible with main programming languages: Labview, Python and Matlab
