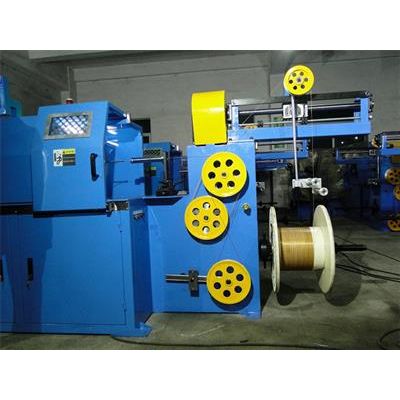

Gemwell - High Speed Horizontal Taping Machine
High Speed Horizontal Taping Machine for Fire Resistance Cable Description : Payoff DIN400-630. Horizontal double layer taping machine. Dual wheel capstan. Take up DIN400-630. PLC control system with color touch screen.
Most popular related searches
Application for fire resistance cable:
- Conduct: <P0.7-4.0mm
- Tape: Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, polyester tape, cotton paper etc.
- PLC control system, taping pitch, production, line speed set on touch screen, easy operation.
- Bi-directional for tape rotation. Each taping head individually run and control.
- Tape tension control electro-magnetic clutch or Hysteresis clutch, ensure steady tension.
Advanced function (Optional):
High capacity bobbin type tape
- Suitable materials Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, cotton paper
- Rotate speed MAX2200rpm, or customized
- Suitable wire dia. Ф0.7~4.0mm
- Taping direction S/Z (Bi-directional head rotation)
- Tape width 4~15mm
- Taping pitch 4~20 mm±1%, overlapping 0~67%, program setting
- Tension element Electro-Magnetic clutch / Hysteresis clutch (optional)
- Control system PLC automatic control system + HMI color touch screen
- Taping driving Frequency inverter motor/ Servo motor (optional)
