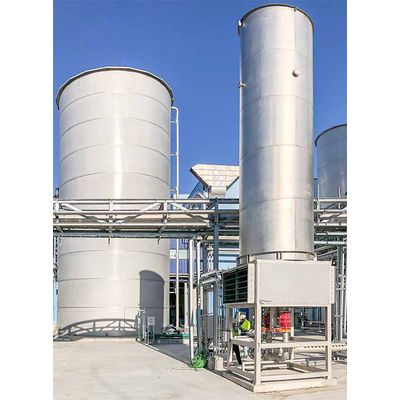

Himmel - Model MTU-HT Series -High-Temperature Flare

• Thermal disposal of combustible surplus gases (landfill gas plants)
• various special gases
• suitable for continuous operation

MTU-HT flares are equipped with heat-resistant ceramic insulation (up to 1220 °C) and automatically controlled

The flares are supplied with DVGW-tested gas motor valves in 1 to 4 stage versions and

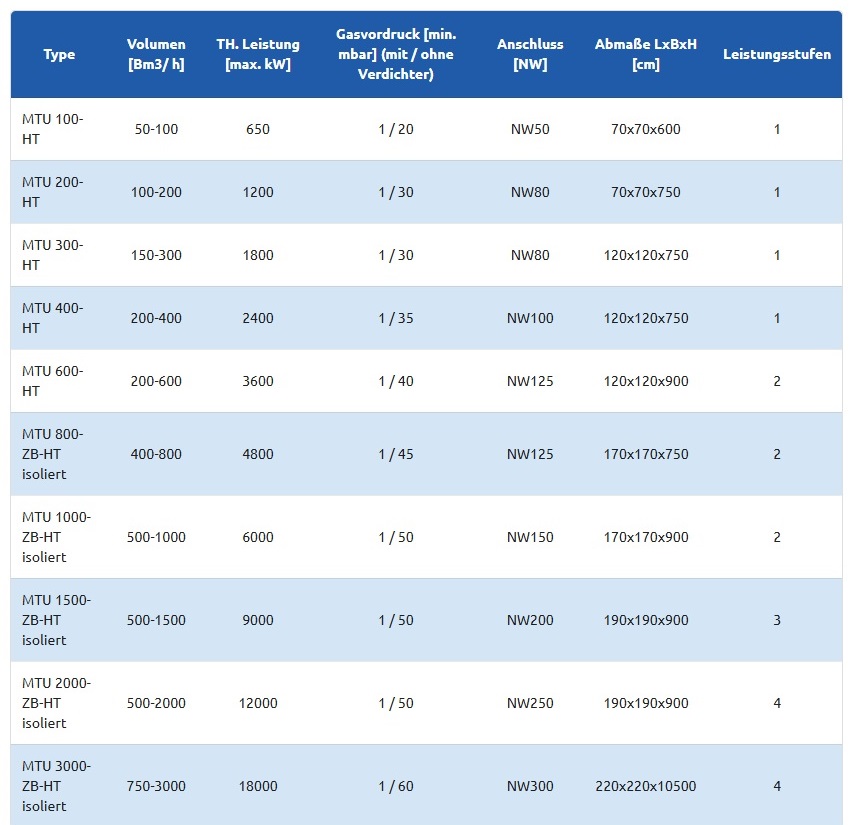

Available with a gas throughput of 50 – 3000 Bm3/h.

The flare burner starts as soon as the start command and the gas pressure to the flare are present and monitors the flame or regulates the temperature during operation. All control functions are integrated in a weatherproof and ready-to-connect control cabinet. All components that come into contact with the medium are made of V4A steel, welded, blasted and passivated.

Ignition systems: Ignition burners for propane, natural and special gases

• Volume flow: 50 – 3000 Bm3/h
• Fuel: Landfill gas, biogas, special gases
• Calorific value: 35 – 95% CH4
• Gas pressure: min. 20mbar
• Connection: DN 50 – DN 300
• Ignition: High voltage 10kV
• Flame monitoring: UV cell
• Temperature control via PLC

• Hidden combustion < 1000 °C
• Dwell time over 0.3 seconds
• Insulated combustion chamber
• Burner control according to EN746
• Suitable for continuous operation
• PLC with touch display

• Integrated gas compressor GVD
• Additional performance levels
• Stainless steel control cabinet
• stepless power regulation
• Torch length according to customer requirements
• Torch hat as weather protection
