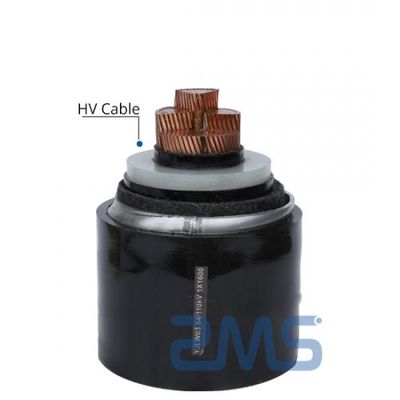

ZMS - Model 2XS(F)2Y, A2XS(F)2Y -High Voltage 110kV Power Cable
High-voltage power cables are suitable for the primary distribution of electricity up to a maximum network voltage of 110 kV, and also where mechanical protection is provided by other means. The cables are triple extruded on modern catenary equipment in accordance with the latest IEC standards. The water barrier ensures that in the event of cable damage, the length of repair and associated work is kept to a minimum. These cables are equipped as standard with a high-density polyethylene sheath that combines abrasion resistance and flexibility. The range can be customized to meet specific project requirements where required.
Voltage Rating: (Uo/U)(Um) 64/110kV (123kV)
Highest Network Voltage: 123kV
Temperature Rating Operating Temperature: -30°C to +90°C
Short Circuit Temperature: +250°C
Overload Temperature: +130°C (100h per year maximum)
Minimum Installation Temperature: -20°C
Conductor: Class 2 copper or aluminum conductor, compacted or segment strand Milliken
Conductor Screen: Extruded semi-conductive XLPE (Cross-Linked Polyethylene)
Insulation: XLPE (Cross-Linked Polyethylene)
Insulation Screen: Extruded Semi-conductive XLPE (Cross-Linked Polyethylene)
Separator: Water swellable semi-conductive tape
Screen: Copper wire screen, with a counter helix of copper tape
Separator: Water swellable tape
Sheath: HDPE (High-Density Polyethylene)
Sheath Colour: Black
STANDARDS: IEC 60840, HRN HD 632, IEC/EN 60228
