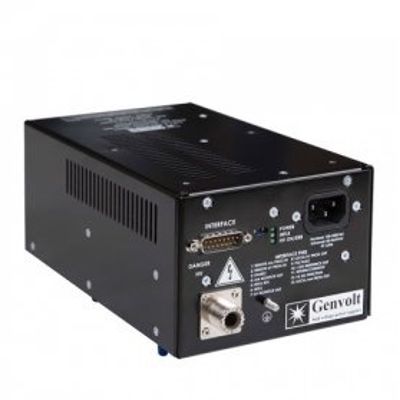

Genvolt - Model 8000 Series -High Voltage DC Power Supply
The Genvolt 8000 series, High Voltage DC Power Supply, is a rugged modularised range of AC input DC High Voltage units that are designed to operate from a universal mains input from 85VAC to 256VAC 50/60Hz. Power Output options are available from 500V to 70kV at 120W and 49kV to 70kV at 200W.
HVPS Features
The HVPS have an active boost-style Power Factor Correction front end – i.e. an active rectifier. This offers a very low harmonic distortion at mains frequencies with a power factor of up to 0.99.
The modules have a FIXED polarity output which should be specified at the time ordering using the “Model Finder” table.
Operation And Protection
They operate in both Voltage Control and Current Control modes with fast active crossover between the modes.
Integral protection against output short circuits or arcs over temperature and output overvoltage allow for operation in the most demanding environments.
- Input Voltage: Universal 85 – 264VAC
- Input Frequency: 50Hz, 60Hz
- Output Power: 120W, 200W
- Output Adjustable Range: 0 to 100% Voltage
- Voltage Ripple: < 0.2%
- Load Regulation: 0.01%
- Line Regulation: 0.05%
- Stability: 0.02
- Power Factor: 0.99
Regulatory Approvals
- Compliant to 2004/108/EC, the EMC directive
- 2006/95/EC, the LVD
- RoHS compliant and CE approved

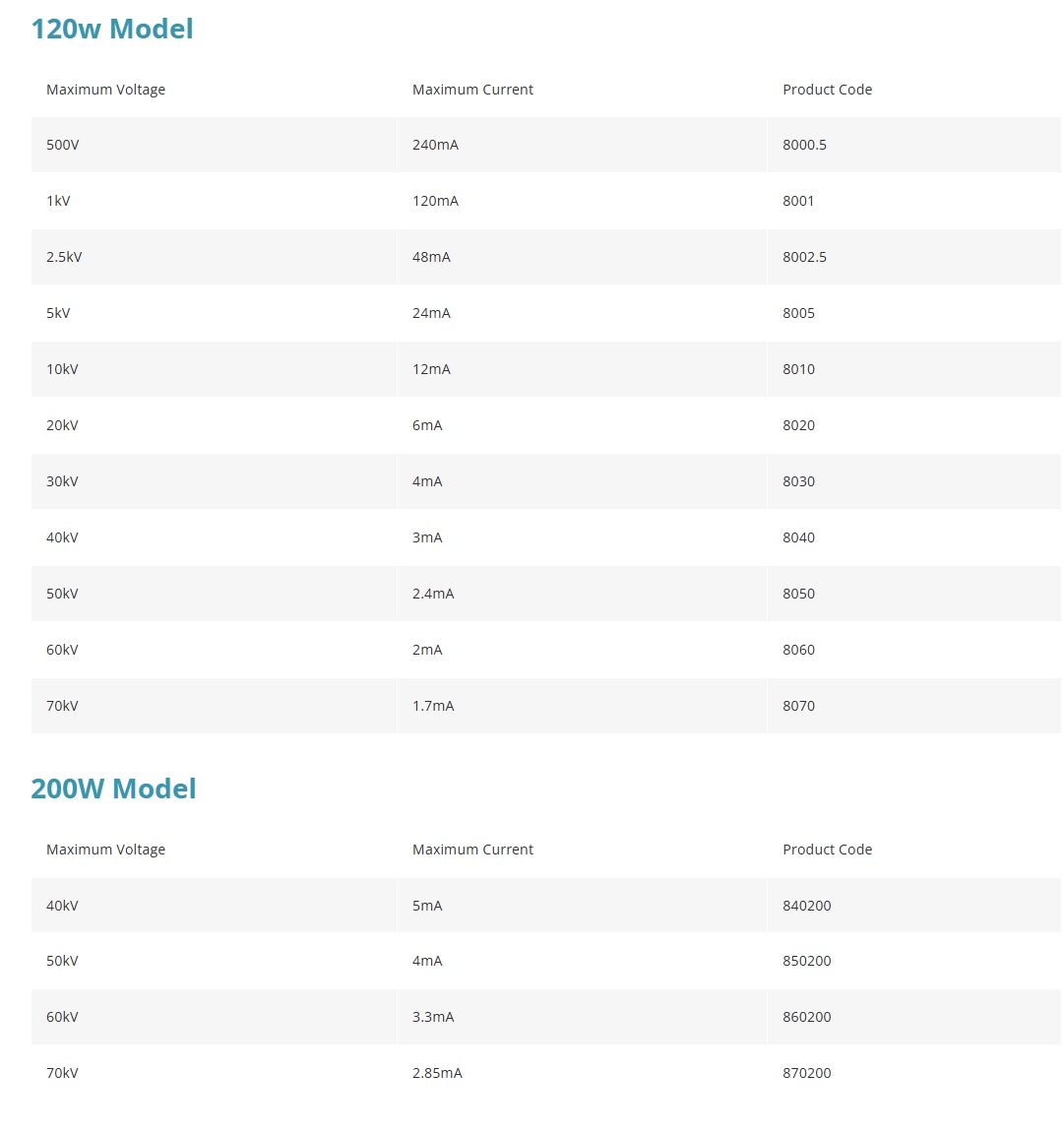

Model Finder Table
- Electrospinning & Electrospraying
- X-ray Generation
- Insulation Testing
- Capacitor Charging (contact Genvolt for individual applications)
- Laboratory Use
