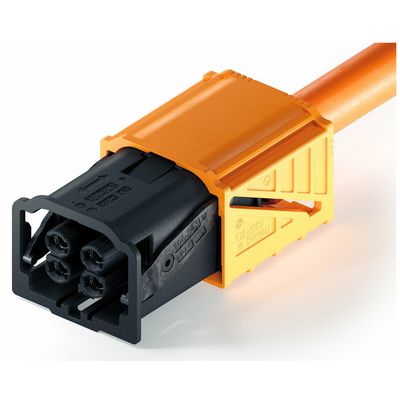

PowerStar - Model HPS40 4+2 -High-Voltage On-Board Chargers
The HIRSCHMANN AUTOMOTIVE PowerStar 40 4+2 connection system is shielded and sealed. It is designed for all high-voltage on-board chargers available on the market that are used in electric vehicles. Needless to say, the high-voltage connectors comply with the global standards of the automotive industry. The products not only impress with their optimized design and low weight. Their operating flexibility is also hard to beat. As the smallest connection system available in this segment, it guarantees optimum performance and top processing.
Most popular related searches
- compliant with automotive test specification LV 214 & USCAR*
- watertight according to IP6K9K
- high current load at high ambient temperatures
- 360° shielded connection
- compact design
- low shielded transition resistance
- simple installation
PARAMETERS: HPS40 (4+2 way)
- Current Class: current class 1 and 2 connector
- Applications: 3-phase charging
- Number of Pins: 4 (high voltage) + 2 (HVIL optional)
- Operating Condition: U = 1,000 VDC
- Voltage Class:
- Class B according to ISO 6469-3:2011
- 60 VDC < U ≤ 1,000 VDC
- 25 VAC < Ueff ≤ 707 VAC (15-150 Hz)
- Ambient Condition: –40° C to +140° C
- Maximum Current Load: 53A at 80° C (4 x 6.00 mm2), see deratings product specification
- IP-Degree of Protection: IPXXD (unmated); IPXXB (mated)
- Watertightness: IP6K9K, IPX8
- EMC Performance (6.00 mm2):
- until 2 MHz < 2.5 mΩ/m
- until 30 MHz < 5 mΩ/m
- > 65 dB (30 MHz to 300 MHz)
- Shielded Area: 360° circumferential
- Shield Contact Resistance: < 2,0 mΩ (total from sheathed cable until aggregate housing)
- Vibration Strength 2: according to LV214/215 - PG17 (first fixation point at < 200 mm, second fixation point at < 250 mm)
- Mating/Unmating Force: < 75 N
- Secondary Lock System: activating force < 40 N, no accidental oppening possible
- Koshiri Safety: yes
- Polarization/Coding: incorrect insertion force < 225 N
- CPA System: operating force < 30 N
- HVIL System: min. 1.0 mm (nominal 2.0 mm), leading
CONTACT SYSTEM INFORMATION
- Contact System: HCT4 (4.0 mm round terminal), Ag, crimped
- Material/Surface: Cu-Leg., CuNiSi, Ag
- Connection: crimped
- Mating Cycles: max. 50 cycles
CUSTOMER-SPECIFIC INFORMATION
- Cable Cross Section: 4.0 mm2; 6.0 mm2 as MCC solutions with different pole numbers
- Contact Carrier Codings: A, B, Z
