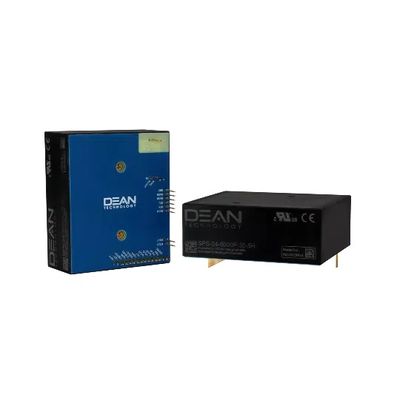

HVP - Model SPS Series -High Voltage Power Supply

SHARE

The SPS Series are high voltage power supplies utilizing a fully digital control loop. This patented technology enables the products to provide unprecedented flexibility in performance, features, and system integration. Both performance and features can be configured and customized through software. They offer remote monitoring and control, constantly log essential statistics while running for use in design or troubleshooting and are expandable through available GPIO pins. A Windows application and full development SDK are available to further enable design work, making the SPS series the fastest way to design with high voltage.

Most popular related searches
high voltage power supply
high voltage power
high voltage supply
DC power supply
utility power
  • Digital or Analog Remote Control
  • Software Configurable and Performance
  • Serial Communications with SDK
  • Available GPIO Pins
  • Data logging of Power Supply Parameters
Series Output Voltage (V) Max. Output Current (mA) Max. Output Power (W) Input Voltage (VDC) Ripple 1 Hz to 1 kHz %Vp-p Ripple 1 kHz to 1 MHz %Vp-p
SPS-24-250N-4 -250 16 4 23 – 31 0.145 0.015
SPS-24-250P-4 250 16 4 23 – 31 0.145 0.015
SPS-24-500N-4 -500 8 4 23 – 31 0.13 0.008
SPS-24-500P-4 500 8 4 23 – 31 0.13 0.008
SPS-24-1000N-4 -1000 4 4 23 – 31 0.06 0.06
SPS-24-1000P-4 1000 4 4 23 – 31 0.06 0.06
SPS-24-2000N-4 -2000 2 4 23 – 31 0.05 0.08
SPS-24-2000P-4 2000 2 4 23 – 31 0.05 0.08
SPS-24-4000N-4 -4000 1 4 23 – 31 0.025 0.008
SPS-24-4000P-4 4000 1 4 23 – 31 0.025 0.008
SPS-24-6000N-4 -6000 0.67 4 23 – 31 0.015 0.01
SPS-24-6000P-4 6000 0.67 4 23 – 31 0.015 0.01
Output Voltage (V) Max. Output Current (mA) Max. Output Power (W) Input Voltage (VDC) Ripple 1 Hz to 1 kHz %Vp-p Ripple 1 kHz to 1 MHz %Vp-p
SPS-24-250N-20 -250 80 20 23 – 31 0.14 0.016
SPS-24-250P-20 250 80 20 23 – 31 0.14 0.016
SPS-24-500N-20 -500 40 20 23 – 31 0.12 0.012
SPS-24-500P-20 500 40 20 23 – 31 0.12 0.012
SPS-24-1000N-20 -1000 20 20 23 – 31 0.11 0.007
SPS-24-1000P-20 1000 20 20 23 – 31 0.11 0.007
SPS-24-2000N-20 -2000 10 20 23 – 31 0.1 0.01
SPS-24-2000P-20 2000 10 20 23 – 31 0.1 0.01
SPS-24-4000N-20 -4000 5 20 23 – 31 0.09 0.014
SPS-24-4000P-20 4000 5 20 23 – 31 0.09 0.014
SPS-24-6000N-20 -6000 3.3 20 23 – 31 0.076 0.019
SPS-24-6000P-20 6000 3.3 20 23 – 31 0.076 0.019
Output Voltage (V) Max. Output Current (mA) Max. Output Power (W) Input Voltage (VDC) Ripple 1 Hz to 1 kHz %Vp-p Ripple 1 kHz to 1 MHz %Vp-p
SPS-24-250N-30 -250 120 30 23 – 31 0.24 0.024
SPS-24-250P-30 250 120 30 23 – 31 0.24 0.024
SPS-24-500N-30 -500 60 30 23 – 31 0.2 0.014
SPS-24-500P-30 500 60 30 23 – 31 0.2 0.014
SPS-24-1000N-30 -1000 30 30 23 – 31 0.156 0.012
SPS-24-1000P-30 1000 30 30 23 – 31 0.156 0.012
SPS-24-2000N-30 -2000 15 30 23 – 31 0.112 0.012
SPS-24-2000P-30 2000 15 30 23 – 31 0.112 0.012
SPS-24-4000N-30 -4000 7.5 30 23 – 31 0.088 0.013
SPS-24-4000P-30 4000 7.5 30 23 – 31 0.088 0.013
SPS-24-6000N-30 -6000 5 30 23 – 31 0.076 0.02
SPS-24-6000P-30 6000 5 30 23 – 31 0.076 0.02

SOFTWARE AND CONFIGURATION OPTIONS

A Windows GUI application designed to aid in development using the SPS Series, and a full Software Development Kit (SDK) with essential libraries and documentation are available at www.deantechnology.com.

For a list of configuration options and default values see the SPS User Settable Parameters document. Virtually limitless configuration options as well as performance and feature customizations are possible through software changes. Contact the factory or authorized sales partner to discuss specific needs.
