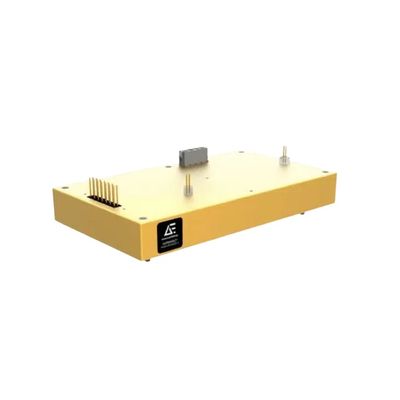

HVP - Model High Power C Series -High Voltage Power Supply

SHARE

The High Power C series features 17 highly efficient models that range from 125 to 60,000 VDC. They are available in single–output positive or negative polarities. Benefit from up to 250 W of fast-rise charging power with less than 1% overshoot from a 24 VDC input. Easily control and monitor high voltage output and current from one of the several available analog interfaces. The High Power C series is a smart choice for applications needing greater than 30 W of high power density.

Most popular related searches
high voltage power supply
high voltage power
DC power supply
high voltage supply
high power density
high voltage output
discharge testing system
high voltage current
fast charging
high voltage monitoring
  • Capacitive charging and pulsed power applications
  • High potential testing and Electrostatic Discharge (ESD)
  • Automated Test Equipment (ATE)
  • Lasers and opto-electronics
  • Ultrasonic pulse generators

Part Number Max. Voltage (Vdc) Input Voltage (Vdc) Max. Power (W) Current (mA) Ripple (%) Temp. Coefficient (ppm per °C)
1/8C24-x60 125 24 60 480 <1.0 <50
1/8C24-x125 125 24 125 1000 <1.0 <50
1/8C24-x250 125 24 250 2000 <1.0 <50
1/4C24-x60 250 24 60 240 <1.0 <50
1/4C24-x125 250 24 125 500 <1.0 <50
1/4C24-x250 250 24 250 1000 <1.0 <50
1/2C24-x60 500 24 60 120 <1.0 <50
1/2C24-x125 500 24 125 250 <1.0 <50
1/2C24-x250 500 24 250 500 <1.0 <50
1C24-x60 1000 24 60 60 <1.0 <50
1C24-x125 1000 24 125 125 <1.0 <50
1C24-x250 1000 24 250 250 <1.0 <50
2C24-x60 2000 24 60 30 <1.0 <50
2C24-x125 2000 24 125 62 <1.0 <50
2C24-x250 2000 24 250 125 <1.0 <50
4C24-x60 4000 24 60 15 <1.0 <50
4C24-x125 4000 24 125 31 <1.0 <50
4C24-x250 4000 24 250 62 <1.0 <50
6C24-x60 6000 24 60 10 <1.0 <50
6C24-x125 6000 24 125 21 <1.0 <50
6C24-x250 6000 24 250 42 <1.0 <50
8C24-x60 8000 24 60 7.5 <1.0 <50
8C24-x125 8000 24 125 15.5 <1.0 <50
8C24-x250 8000 24 250 31.2 <1.0 <50
10C24-x60 10000 24 60 6 <1.0 <50
10C24-x125 10000 24 125 12.5 <1.0 <50
10C24-x250 10000 24 250 25 <1.0 <50
12C24-x60 12000 24 60 5 <1.0 <50
12C24-x125 12000 24 125 10.5 <1.0 <50
12C24-x250 12000 24 250 20.8 <1.0 <50
15C24-x60 15000 24 60 4 <1.0 <50
15C24-x125 15000 24 125 8.3 <1.0 <50
15C24-x250 15000 24 250 16.7 <1.0 <50
20C24-x60 20000 24 60 3 <1.0 <50
20C24-x125 20000 24 125 6.25 <1.0 <50
20C24-x250 20000 24 250 12.5 <1.0 <50
25C24-x60 25000 24 60 2.4 <1.0 <50
25C24-x125 25000 24 125 5 <1.0 <50
25C24-x250 25000 24 250 10 <1.0 <50
30C24-x60 30000 24 60 2 <1.0 <50
30C24-x125 30000 24 125 4.17 <1.0 <50
30C24-x250 30000 24 250 8.33 <1.0 <50
40C24-x60 40000 24 60 1.5 <1.0 <50
40C24-x125 40000 24 125 3.13 <1.0 <50
40C24-x250 40000 24 250 6.25 <1.0 <50
50C24-x60 50000 24 60 1.2 <1.0 <50
50C24-x125 50000 24 125 2.5 <1.0 <50
50C24-x250 50000 24 250 5 <1.0 <50
60C24-x60 60000 24 60 1 <1.0 <50
60C24-x125 60000 24 125 2.08 <1.0 <50
60C24-x250 60000 24 250 4.17 <1.0 <50

Input Voltage
23-30 VDC for full power (24V average)

Output Voltage
17 models from 0 to 125 V through 0 to 60 kV

Output Power
60, 125 or 250W of output power

Polarity
Available as fixed positive or negative (replace x in part number with -P or -N)

Operating Temperature
-40 to +65 Deg.C as standard
+10 to +45 Deg.C with -25PPM Option

Temperature Coefficient
+/- 50 ppm as standard (25ppm optional)

Standards
UL/cUL recognized component; CE mark (LVD and RoHS)

Options
-H Heatsink 0.400″ high (sized to fit case)
-Z11 PCB support 0.187″ standoffs on top cover
-I5 5V control & monitors
-I10 10V control & monitors
-25ppm reduced temperature coefficient
-AD Arc detect (>8kV models only)
-AQ Arc quench (>8kV models only)
