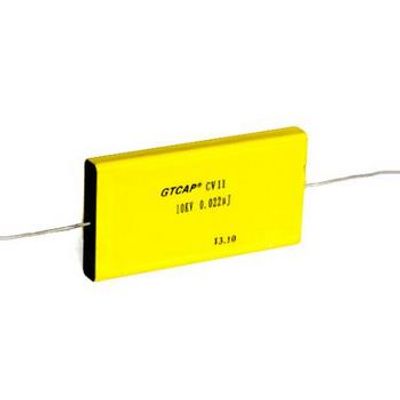

GTCAP - Model GTCV11 -10KV, 15KV, 30KV -High Voltage Silver Mica Paper Capacitor
Green Tech manufacture and export GTCAP CV11 high voltage silver mica paper capacitor 10KV, 15KV, 30KV
Most popular related searches
-
Brand: GTCAP
-
shipping port: Shanghai
-
Model: CV11
-
value: 0.004μF~0.1μF
-
votage: 2KV~30KV
-
Feature: high voltage,big current,high frequency
-
MOQ:10pcs
-
Payment: T/T,L/C, Western Union,Paypal,Alipay
-
Color:Yellow
-
Lead Time: 15~30days
-
product origin: China
- Using the best mica paper as material,dipping high temperature epoxy resin.
- High frequency,high voltage and big current.
- Very stable at high frequency circuit.
- Our CV11 series silver mica pcapacitors are suitable to high frequency, high voltage, big current circuit. Like high frequency feedback circuit,high frequency resonance circuit and pulse circuit etc.
- Widely use in satellite, aerospace, ship, medical equipment, oil down-hole equipment, welding machine,metallurgy equipment etc.
- Temperature Range: -40℃～+85℃
- Capccapacitance Tolerance: ±5%,±10%,±20%
- Relative Humidity: 80%, at +40℃ can be short time at 95~98%.
- Atmospheric pressure: 6x104Pa~1.04x105Pa
- Vibration: frequency 10~500Hz, acceleration: 10g
- Working voltage: 2KV~30KV
- Working current: 5A~50A
- DC test voltage: at room termperature, rated voltage U0≤10KV capacitor, load 2 times working voltage, rated voltage 10KV﹤U0≤30KV capacitor,load 1.5 times working voltage, Rated voltage U0﹥30KV capacitor,load 1.2 times working voltage, after keep 1 minute,no breakdown and flashover.
- Insulation resistance(R): normal climate
- Capacitance C ≥ 0.1μF R≥1000MΩ
- Capacitance C＜ 0.1μF R＞5000MΩ
- Dissipation factor: tgδ≤4×10-3(1KHz), Pass D.C. rated voltage test.
