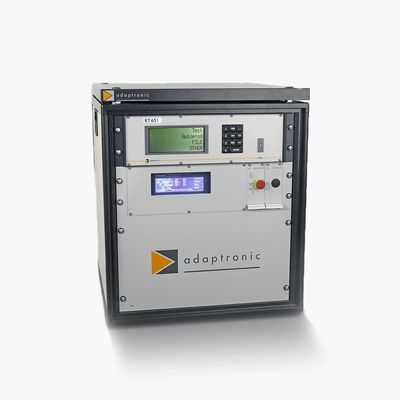

Adaptronic - Model KT 651 -High-Voltage Wiring Tester System

SHARE

The KT 651 high-voltage wiring tester tests the voltage resistance up to 5000 VAC/6000 VDC and optionally high current up to 2 ADC at 64 test points. The KT 651 effortlessly handles connection, short-circuit, and component tests, thereby ensuring the quality of the most demanding high-voltage cables. Optional features such as pin length and voltage measurement as well as LCR measuring bridges make the HV tester a flexible solution.The precise measurement technology for resistors and capacitors as well as sensitive connection tests from 0.5 Ω to demanding short-circuit tests up to 100 MΩ make the device an extremely versatile quality assurance tool.With various interfaces and expandable I/Os, the KT 651 integrates seamlessly into automated production lines. The stand-alone solution with the ability to automatically learn what constitutes a good sample and the intuitive NT Control LT software for test program management and complete documentation also simplify the testing process.

Most popular related searches

high voltage testing

high voltage wiring

high voltage cable

high voltage testing system

voltage testing system

high voltage system

KT 651
Metric
High voltage test (AC) max.: 5000 V
Test current (AC) min.: 30 mA
Test of other components: Diodes, LEDs, Zener diodes, varistors, surge arresters
Interfaces: Network, 2 x USB, pin number probe, connection option for red-green warning lamp, foot switch, test result indicator
Dimensions/height: 650 mm
Width: 555 mm
Dimensions/depth: 600 mm
Weight: 62 kg
Voltage (AC), input max.: 230 V
Frequency, input min.: 50 Hz
Frequency, input max.: 50 Hz
Voltage, input, connector: Protective contact plug (240 V, 16 A, 3-pole)
Ambient temperature, operation min.: 10 °C
Ambient temperature, operation max.: 40 °C
Ambient temperature, storage min.: 10 °C
Ambient temperature, storage max.: 60 °C
Air humidity non-condensing min.: 30 %
Air humidity non-condensing max.: 70 %
Test voltage (AC) max.: 5000 V
Test voltage (DC) max.: 6000 V
Test current (DC) max.: 30 mA
Test points, total max.: 64
Continuity test via threshold identification min.: 0.001 Ω
Continuity test via threshold identification max.: 10000000 kΩ
Short-circuit test via threshold identification min.: 20 kΩ
Short-circuit test via threshold identification max.: 5 MΩ
Resistance measurement min.: 0.001 Ω
Resistance measurement max.: 10000 MΩ
Capacitance measurement min.: 10 nF
Capacitance measurement max.: 0.02 F
High voltage test (DC) max.: 6000 V
DIO voltage max.: 24 V
