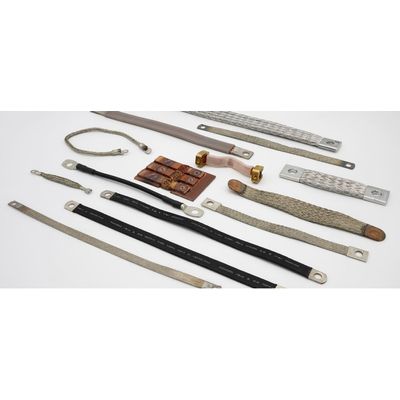

Our ground straps, power straps, and connections made of E-Cu flat braids are used wherever electrical contacts need to be flexibly bridged and mechanical movements compensated. They are ideally suited for use in electrical engineering, plant construction, energy supply, as well as grounding and power transmission applications.
The high flexibility of our power connections is determined by the structure of the braids, the cross-section, and the individual wire diameter (0.05 mm to 0.20 mm). We offer a variety of connection types, including:
- Tin-dipped ends
- Crimped copper or brass sleeves
- Cable lugs
- Custom special terminations
EMK Ground Straps – Patented Quality with Press-Welding
Our EMK type ground straps set standards: The connections are press-welded underwater in a special process – ensuring the highest quality and a permanently secure electrical contact. These straps are available in both bare and tinned versions.
As a manufacturer, we offer not only standard solutions but also customized ground straps and power straps, including special dimensions outside our listed products.
Your Advantages at a Glance:
- No solder required
- No contact sleeves needed (available upon request)
- Minimal contact resistance = low heat generation
- High current-carrying capacity
- Low impedance for optimal performance
- No mechanical weakening at the connection point
- Homogeneous transition thanks to innovative manufacturing technology
Our power and ground straps made of E-Cu flat braids (individual wires Ø 0.15 mm, tinned as standard) impress with maximum conductivity and mechanical flexibility. They are universally applicable – as grounding strap, ground connection, or highly flexible power transmission element, especially where the lowest transition and connection resistances are required.
All cross-sections are also available by the meter as well as in aluminum version. Upon request, we supply insulated variants and special sizes – precisely tailored to your requirements.
