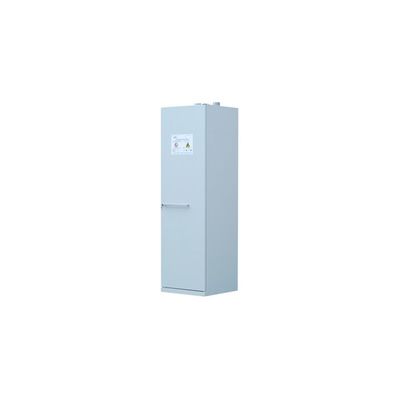

Hiltra Labsaver - Model F90 LS620-EN - RAL7035/Grey -Cabinet for Storage of Li-ion Batteries
Article number: 060600220. Cabinet certification: F90 according to EN 14470-1. Dimensions external WxDxH: approx. 600 x 600 x 2035 mm. Dimensions internal BxDxH: approx. 492 x 450 x 1724 mm. Self-closing door: Single, right-hinged, lockable with cylinder lock. Standard equipped with:: Thermal door interlock. 4x PE-coated grid shelves. Grid Shelf BxDxH: approx. 466 x 425 x 25 mm. Load capacity shelves: up to 75 kg when evenly distributed. Own weight: approx. 250 kg. Packaging and transport: on pallet, upright H=2200 mm.
Most popular related searches
Version 3.0 - 01-2020
HILTRA® F90 LABSAVER® Li-ion Series (STORAGE):
These fire safety cabinets comply with the European standard EN 14470-1/2004, fire resistance 90 minutes. Applicable within PGS 15/Version 1.1 (Sept 2016) Regulation 3.3. The facility is specifically adapted for the storage of lithium-ion batteries. The Labsaver® cabinet is only suitable for indoor use.
BASIC CAST:
Certification/Fire resistance of cabinet:
- Fire resistance 90 minutes determined according to the European Standard (NEN-)EN 14470-1/2004 by the accredited test institute MPA Dresden.
- Fire resistance tested from the inside at the Battery University in Karlstein.
- Optional electrical configuration tested and certified in accordance with EN 3140.
Enclosure:
- Enclosure body and door made of zincor steel and powder coated optionally in:
- RAL 7035/light grey or - RAL 1007/narcis yellow or Cabinet body RAL 7035 and door(s) in RAL 1007
- Fire resistant insulation package made from non-combustible, environmentally friendly materials finished with a white impact and scratch resistant HPL top layer.
- Enclosure interior has a potential-free earth connection to the earth connection point on the enclosure roof.
- Standard equipped with freely accessible adjusting feet ± 20 mm for leveling the cabinet.
Door:
- Front fitted with single or double self-closing wing door with handle placed at ergonomic height. Each door (wing) can be locked by a cylinder lock (incl. 2 keys).
- Door rebate provided with fire sealing strips, so that the door rebate is hermetically closed in case of fire.
Fittings:
- Bottom plate in steel, powder coated RAL 7035/light grey.
- Shelf side walls with powder coated steel shelf fixing plate with 50 mm hook-in grid for height adjustment of the shelves.
- Four (4) removable, galvanized and double PE-coated shelf boards, mesh 35 x 35 mm, in RAL 7032/powder grey.
- Shelves have a load capacity of 110 kg with evenly distributed load.
Thermal door locking:
- The door(s) fitted with a thermal locking device which locks the door(s) on the inside at a temperature of ± 70 º C. [function: locking the cabinet until the professional fire brigade can act].
Ventilation openings:
- An integrated ventilation duct with flange connection Ø 80 x H 65 mm on the roof of the cabinet for the fan.
- Ventilation opening equipped with a fire damper which closes automatically in case of fire.
Hazard indication:
- Hazard indication by means of the type label prescribed in EN 14470-1 with pictograms, symbol: "smoking and open flame prohibited" and "flammable substances" and "ADR 9/batteries".
BASE CABINET PLUS:
Base cabinet as described above including:
F90 Emergency hatch in the cabinet roof fitted with:
- An automatically closing fire resistant grille in case of fire.
- Grille with special filter to prevent discharge of burning li-ion particles from the cabinet.
- Emergency pressure hatch covered with a cover with flange Ø 125 mm for mutual connection to a vent pipe to the outside air.
