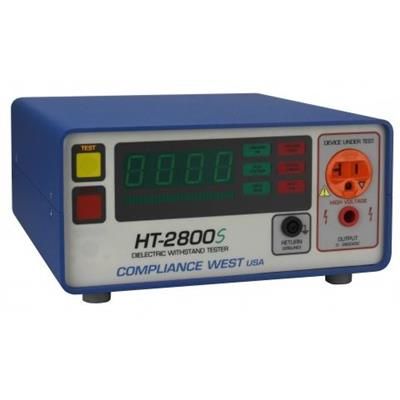

Compliance - Model HT-2800S -Hipot Line Tester
Hipot Tester, 0-2800Vdc @ 5mA and Adjustable Ground Continuity, UL Listed. The newest product of our Hipot Line Testers, the UL Listed HT-S series hipot now comes with an adjustable ground continuity test in range of 0.08 - 1.50 Ω, and Auto-offset for test leads up to 1.00 Ω. Performs 0-2800 DC Hipot Test. Neutral/Hot to Ground Leakage current test up to 5 mA DC. Easy to use and connect. Ships complete with cables, manual, and a Calibration Certificate. Made in the USA. Calibration and repair services available.
Most popular related searches
- High precision leakage current, duration and ground continuity settings.
- Allows no load setup of leakage current and test dwell times.
- Once entered, ground continuity setting, leakage current and test dwell times can be referenced on the front panel display when unit is not testing.
- Leakage currents can be set from 1-5 mA DC in 0.1mA increments.
- Dwell times can be set from 1-60 seconds in 1 second increments.
- Two tests with one setup. Conducts UL/CSA Ground continuity and Hipot tests with one setup, so no additional equipment is needed.
- Small and light. 9.25" wide x 4.75" high x 10" deep. 11 lbs. But rugged enough to test manufactured housing.
- Ground continuity check is defeatable for testing two-wire products.
- Easy equipment connections. Plug your equipment right into the NEMA plug on the front panel. No adapters needed!
- J2 and J3 cords allow connection of pigtail power leads.
- Simple test outcome judgement. Green lights mean pass - red lights mean fail. Failing tests sound a buzzer as well.
- Ready for your UL Inspector out of the box. NIST Traceable Calibration Certificate to MIL-STD45662-A is included. Cal cert is in accordance with UL guidance.
- Operation Instructions are printed on the rear panel for easy reference.
- In-depth testing. Both true Arc Detection and Leakage Current circuits test the product to find problems.
- RED lights and a buzzer leave no question if a failure has occurred.
- Expandable for TUV/European Agency Testing. Can be connected to our GF-30ac 25A Ground Bond Tester with optional TEST-LINK™.
- Easy shift-by-shift Function Test. Compatible with our Patented function checker, the HTT-1and HTT-1R (With 0.1 ohm Ground check Pass/Fail Setup).
- Voltage Range: 0-2800 DC
- Leakage Current Set Point: 1-5 mA DC
- Input Voltage Requirements: 117-127 V, 50 /60 Hz
- Fuse Requirements: 120 V, 2 A Slow Blow
- Arc Detect: Independent High Frequency Circuit
- Leakage Detect: Independent Low Frequency Circuit
- Ground Continuity Set Point: 0.08 Ω - 1.50 Ω, Defeatable
- Ground Continuity Test Current: 100 mA
- Test Time Range: 1 - 60 Seconds
- Ramp Time Range: 1 - 5 Seconds
- Voltage Meter Accuracy: ± 2 %
- HV Shutdown by Ground Fail: < 7 mS
- Duty Cycle: 100%
- Discharge Time: < 1.3 Sec VDC at open circuit
- Transformer Power: < 500 VA
- Pass/Fail Repeatability: ± 3 %
- Output Connector: NEMA plug
- Display: 4 digits LED display
Test Indicator Led indicators
- Failure Indicator: Led indicators and buzzer
- Programable: No
- PLC Interface: Optional
- TestLink (With GF-30AC): Optional
- Computer Control: No
- Voltage Hold on failure: No
Top Mounted Handle Optional
- Test Defeat: Ground Continuity
- Autoreset on Pass: Optional
- Operation Temperature: 15 - 40 °C
- Relative Humidity Range: 0 - 90 % Non-condensing
- Dimensions: 9.25" wide x 475" high x 10" deep
- Weight: 11 Lbs
- Calibration: One year calibration Certificate
- Test Cords: Return Lead, Power Cord
- Test Cords: Ground Continuity Connector Tip
- Test Cords: J2 and J3 Optional
- Test Cords: Alligator Clip
