HagerEnergy - Model S10 E Pro -Home Power Station
The S10 E PRO is the most powerful home power station. It is designed for households with an annual cross-sectoral electricity consumption beginning at approximately 6,500 kilowatt hours, which require a sufficiently large capacity for charging an e-vehicle or other applications, and a correspondingly high discharge capacity of the storage. Customers who own an S10 E PRO home power station and an appropriately designed PV system can achieve levels of independence of up to 85% throughout the year, with absolute independence from energy costs. With their own power generation, they largely cover their own demands for household requirements, heat pumps and e-mobility, while the income from the feed-in of surplus energy at least covers the purchase costs for the electricity drawn from the grid.
Full sector coupling with more power and capacity: the S10 E PRO home power station systematically continues the development of E3/DC technology and paves the way for a fully self solar-electric supply, without ongoing energy costs.
THE MOST POWERFUL HOME POWER STATION
Maximum capacity for an annual consumption of over 6,500 kWh
ALL-ROUND INDEPENDENCE
Storage, energy management and high charging performance convenience, heat and e-mobility
24/7 CHARGING STATION ON YOUR ROOF
Charge your e-vehicle batteries, regardless of the weather and the time of day
Utilise high PV output for an self supply
Full, efficient sector coupling
The S10 E PRO makes it possible to exploit the advantages of a home power station in new areas of application. The usable storage capacities range from 11,7 to 29,2 kilowatt hours in the system, and up to 46,7 kilowatt hours with the external battery cabinet. The connectable PV output can also be doubled with the E3/DC additional solar inverter, so that systems with an output of maximum 35 kWp can be used by the home power station for a self supply.
However, the charging and discharging capacity are particularly important – depending on the battery configuration, this amounts to 6 to 9 kW in continuous operation and even up to 12 kW in peak operation. This supports the operation of large heat pumps even more effectively, and enables regular overnight charging of e-vehicles, exclusively with solar power from the storage.
Full performance in the case of power failure
High Level of Security and a System Warranty
Sector coupling with optional future-proofing
Retrofit more capacity within 5 years
The S10 E PRO home power station has a wide range of capacities and adapts to your requirements. Because those requirements can change significantly if the user switches to electric heating or an electric car.
The INFINITY concept gives you maximum security for the future: If you choose an S10 E PRO, you automatically have the option of connecting three additional battery modules to the system within 5 years. This enables you to use much more of your own energy directly.
The INFINITY concept provides even more independence: When the time is right, the device can simply be equipped with additional batteries on site and the next level of self-sufficiency begins. This option applies regardless of the battery type. When the retrofitting work is carried out, the latest modules from E3/DC’s product range will be installed, and they will function perfectly together with the existing batteries.

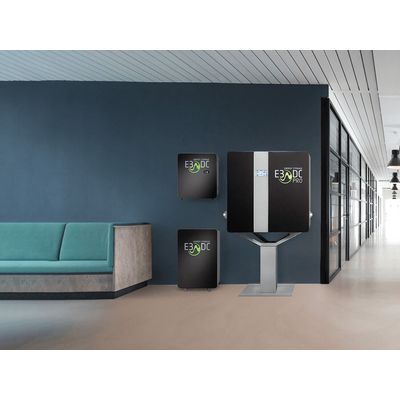

S10 E PRO home power station
For PV systems with an output of 20, or up to 35 kWp
The S10 E PRO home power station is designed to generate up to 20 kWp, or, with an additional inverter, up to a maximum of 35 kWp.
9 kW continuous battery capacity
With the S10 E PRO, optimum independence is achieved at a high rate of annual consumption. Heat pumps and electric vehicles make use of this high charging capacity.
11,7 to 46,7 kWh usable storage
The battery capacity in the S10 E PRO is designed for full sector coupling. Usable capacities can be configured between 11,7 and 46,7 kWh, and the capacity can be expanded within 5 years.
