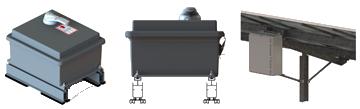

HomeRun - Model LTE -Solar Combiner Boxes
SunLink’s HomeRun LTE line of solar combiner boxes feature a lower price point, more compact enclosures and a streamlined feature set without sacrificing the signature quality of the HomeRun line.
Most popular related searches
Standard product options include:
- 4-24 poles
- Integrated disconnect switch
- NEMA 3R, 4 and 4x (fiberglass or steel enclosure)
- 100 and 250 amp continuous rating design
- 600 and 1000 volt design
- Available pre-wired with PV connector
Mounting hardware is now also available.
- Product Line: Lte
- Maximum Input Fuse Rating: 30A
- Maximum Voltage Rating: 600V, 1000V
- Continuous Current Rating: 100A, 250A
- Input Wire Size: #14 to #6
- Output Wire Size: #6 to 350 MC M
- Input Ground Wire Size: #14 to #6
- Output Ground Wire Size: 1/0AWG, 350 MCM
- Nema Rating: 3R, 4, 4x
- Temperature Range: -25°C to 50°C
- # Of Inputs: Up to 24
- Enclosure Type: Fiberglass, Steel
- Options: Pre-Wired to Bulkhead Connectors
