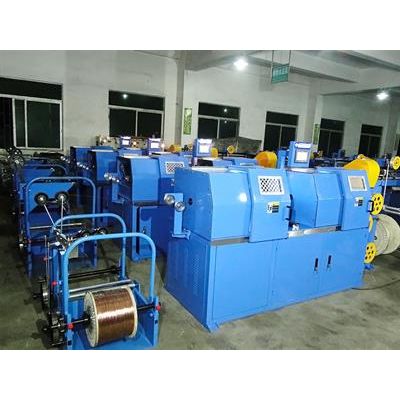

Gemwell - Horizontal Fire Resistance Cable Taping Machine
Fire Resistance Cable Description: Payoff DIN400-630. Horizontal double layer taping machine. Dual wheel capstan. Take up DIN400-630. PLC control system with color touch screen.
Most popular related searches
Application for fire resistance cable:
- Conduct: Ф0.7~4.0mm
- Tape: Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, cotton paper etc.
- PLC control system, taping pitch, production, line speed set on touch screen, easy operation.
- Bi-directional for tape rotation. Each taping head individually run and control.
- Tape tension control electro-magnetic clutch or Hysteresis clutch, ensure steady tension.
Fire Resistance Cable Advanced function (Optional):
- Pad type tape or bobbin type tape
high speed pad type tape
- Suitable materials Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, cotton paper
- Rotate speed MAX2200rpm, or customized
- Suitable wire dia. Ф0.7~4.0mm
- Taping direction S/Z
- Tape width 4~15mm
- Taping pitch 4~20 mm±1%, overlapping 0~67%, program setting
- Tension element Hysteresis clutch/ Electro-Magnetic clutch (optional)
- Control system PLC automatic control system
- Taping driving Frequency inverter motor/ Servo motor optional
