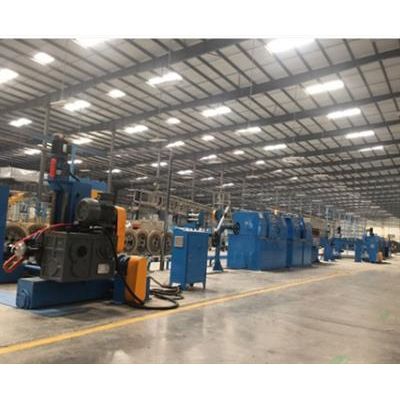

Gemwell - Horizontal Taping Machine for Power Cable Control Cable

Description：

Payoff DIN 1600

Horizontal double layer taping machine

Caterpillar capstan

Takeup DIN1600

PLC control system with color touch screen

Horizontal Taping Machine Advanced function (Optional):

1. High speed pad type tape or high capacity bobbin type tape
2. Different Payoff and takeup
3. Electro magnetic clutch or Hystereisis clutch
4. Serve motor with serve controller
5. Remote Diagnostic Facility
6. Testing equipment such as laser gauge, spark tester etc.

1. PLC control system, taping pitch, production, line speed set on touch screen, easy operation.

1. Bi-directional for tape rotation. Each taping head individually run and control.

1. Tape tension control electro-magnetic clutch or Hysteresis clutch, ensure steady tension.

1. Precise tape pitch, overlap can be set and adjusted in ‘mm’ on touch screen. Pitch keep constant even while acceleration / deceleration.

1. Horizontal taping machine, wire no bent during taping process.

1. Intelligent detection: in case of tape broken / wire broken / reach set meter / tape finished etc., will alarm, save cost for less material wasting.

1. Payoff DIN 1600

1. Horizontal taping machine

• PLC control system, operated by touch screen.

• Bi-directional for each tape head rotation.

• Speed up to 2200RPM.for pad type tape, 1800RPM for spool type tape.

• Special design for tape, high speed pad type or high capacity spool type tape both available.

• Each taping head driven by individual motor and inverter, ensure constant pre-set tape tension from start to end of the tape spool regardless of its size.

• Special design for roller, avoid tape deformation, coat wire close and smooth, ensure product stabilized performance and superior consistency.

1. Caterpillar capstan

1. Takeup DIN 1600.

1. PLC control system with color touch screen

• Monitor taping process such as Line speed, batch count, tape tension, taping overlap etc.

• Clockwise or anti-clockwise taping rotation

• Increase / decrease tape head speed

• Wire broken detectors.

• Tape broken detectors.

• Alarm and Recipe system.

• Suitable materials Mica tape, Teflon tape, BOPP, Mylar tape, Polyimide tape, cotton paper
• Rotate speed MAX2200rpm, or customized
• Suitable wire dia. Horizontal taping head: Ф1mm~8mm or 3mm-19mm.
• Taping direction S/Z (Bi-directional head rotation)
• Tape width 4~40mm
• Taping pitch 4~20 mm±1%, overlapping 0~67%, program setting
• Tension element Electro-Magnetic clutch / Hysteresis clutch (optional)
• Control system PLC automatic control system + HMI color touch screen
• Taping driving Frequency inverter motor/ Servo motor (optional )
