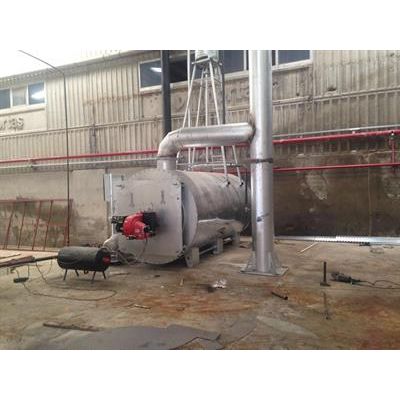

AKFEN MAKINA - Model AK-003 -HOT OIL BOILER
Hot oil boilers are produced and used as an alternative to steam boilers in systems where high temperature is needed in industry (leather, paper, textile, food, chemistry, paint, etc.).DESCRIPTION
paper, textile, food, chemistry, paint, etc.).
It is produced in 8 different sizes between 250.000 Kcal / h and 5.000.000 Kcal / h as standard.
(It is possible to produce at desired capacity depending on customer request.)
Design and manufacturing in accordance with international standards
High quality and long life guarantee
Heat transfer oil guarantees long life
ST 37 quality certified material. Serpentine ST 35.8 quality certified steel drawing pipe
250,000 - 5,000,000 Kcal / h capacity
Natural Gas, LPG or Fuel Oil burners
0 - 10 bar pressure and 0 - 300ºC temperature resistance
Temperature, pressure and oil level automatic control equipment
PLC automation option
Since the closed system works with nitrogen support, there is no risk of burning or oxidation of heat transfer oil.
Refractory on the inside and stone wool on the outside
